Description:

Siftex offers a diverse range of custom welded connectors, crafted from various high-quality materials to meet specific industrial requirements. These connectors, available in different materials like Polyurethane, Metal Detectable X-Spy Polyurethane, Ballistic Nylon,  PVC, VCP, 120W, PolySilk, and others, are designed for durability, strength, and versatility in a wide array of applications.

Learn More:

Reach out to Siftex today to discover more about our custom welded connectors and find the perfect fit for your machinery's needs.

Material Comparison Chart

Siftex's custom welded connectors include materials such as:

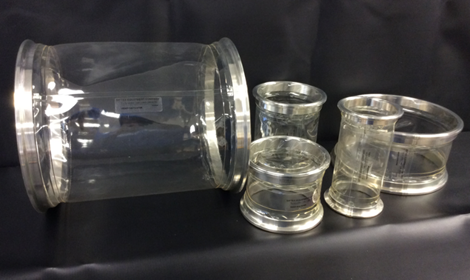

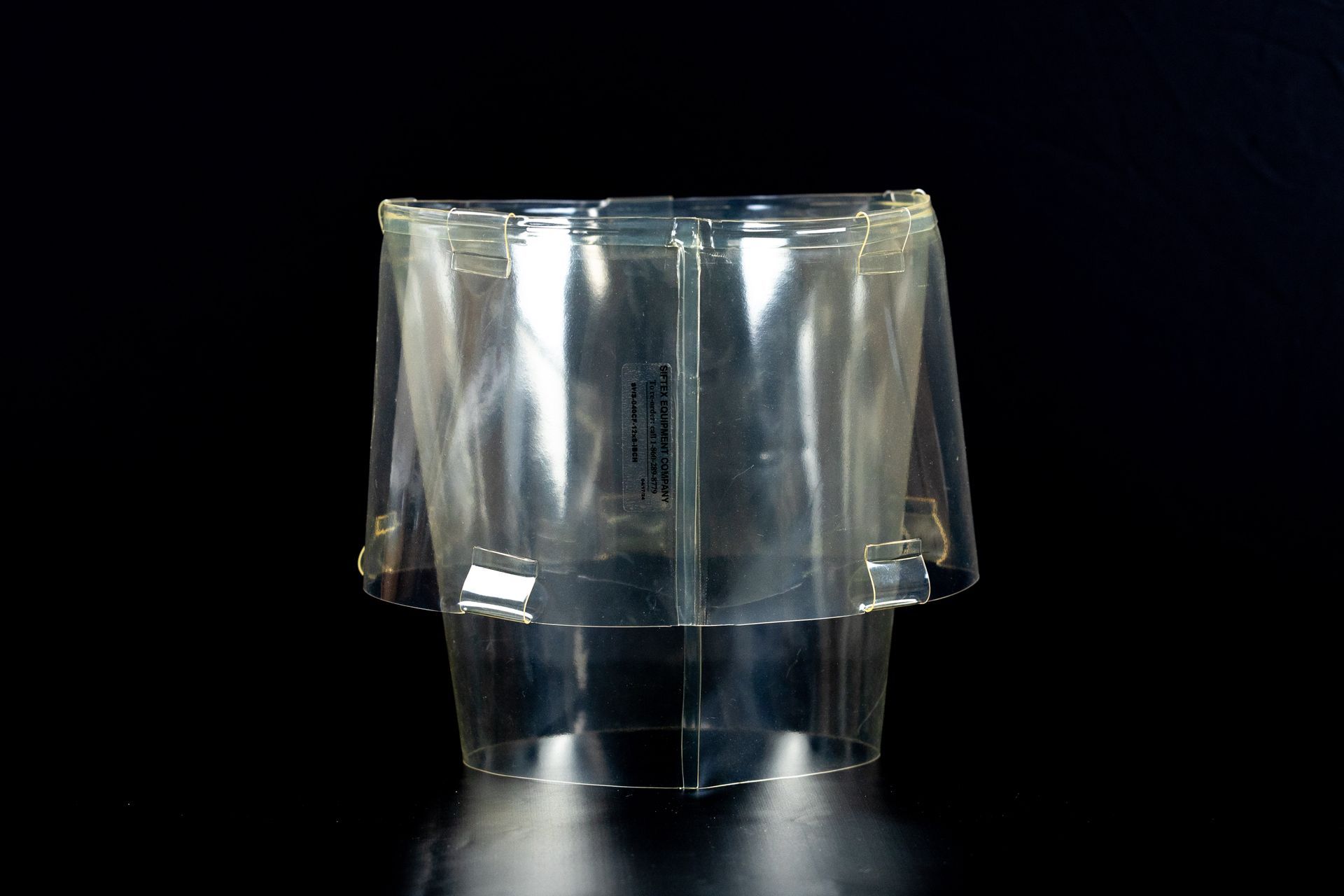

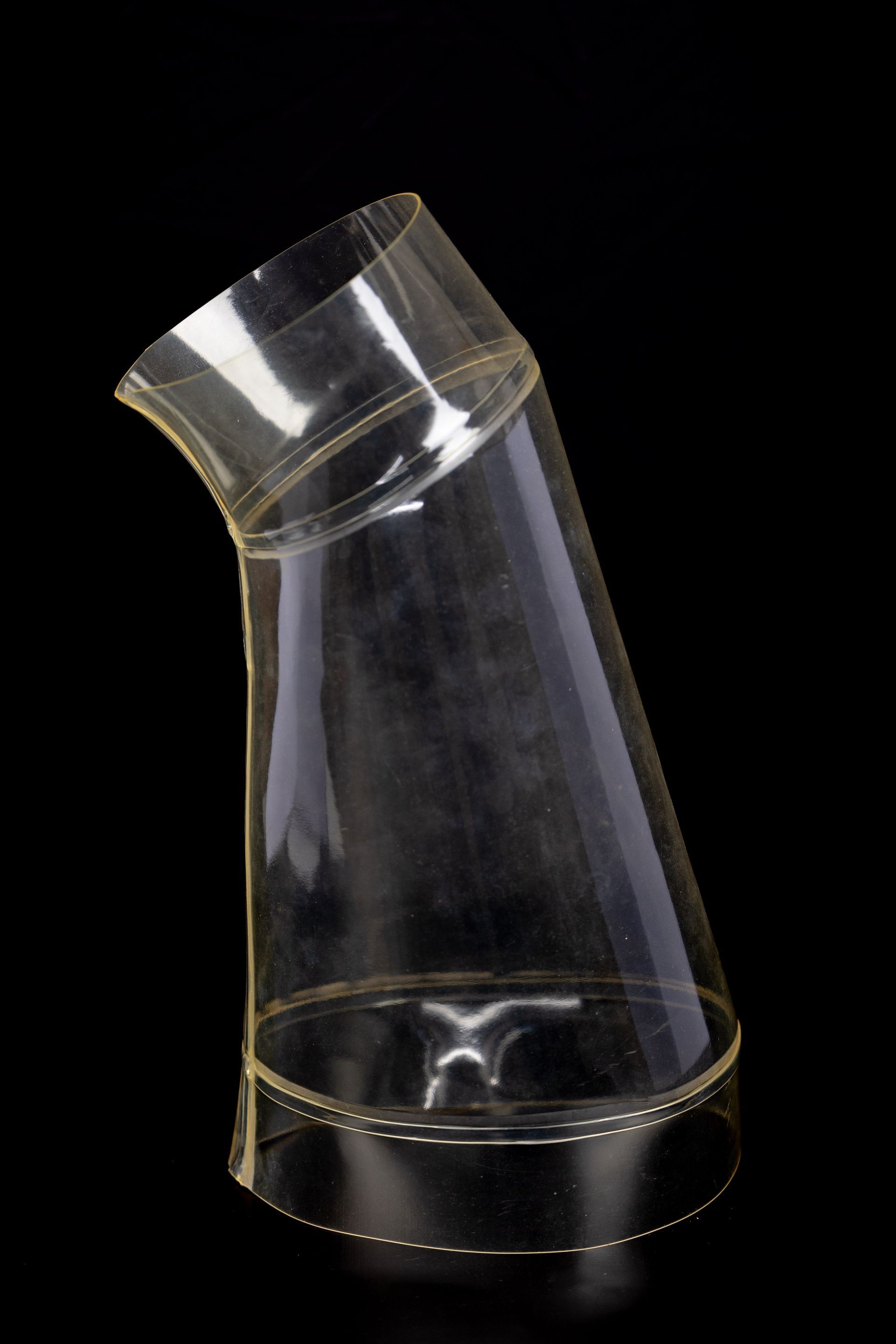

  • ClearFlex Polyurethane: Available in 0.020, 0.040, 0.060 thicknesses, perfect for applications needing static dissipation and high abrasion resistance.

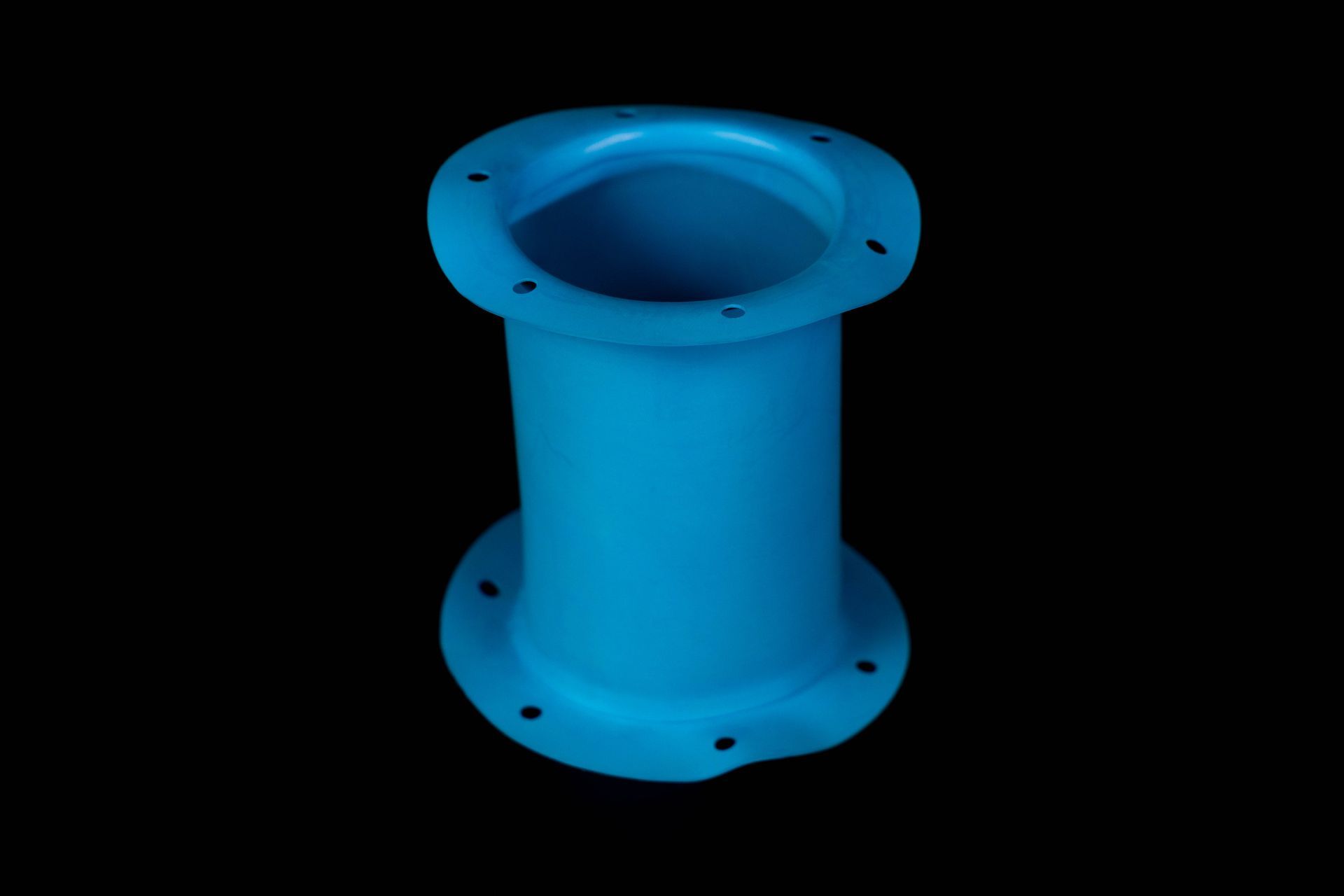

  • X-Spy Polyurethane 0.040: Offers great abrasion and tear resistance, metal, X-Ray detectable, and magnet susceptible properties, ideal for diverse industrial uses.

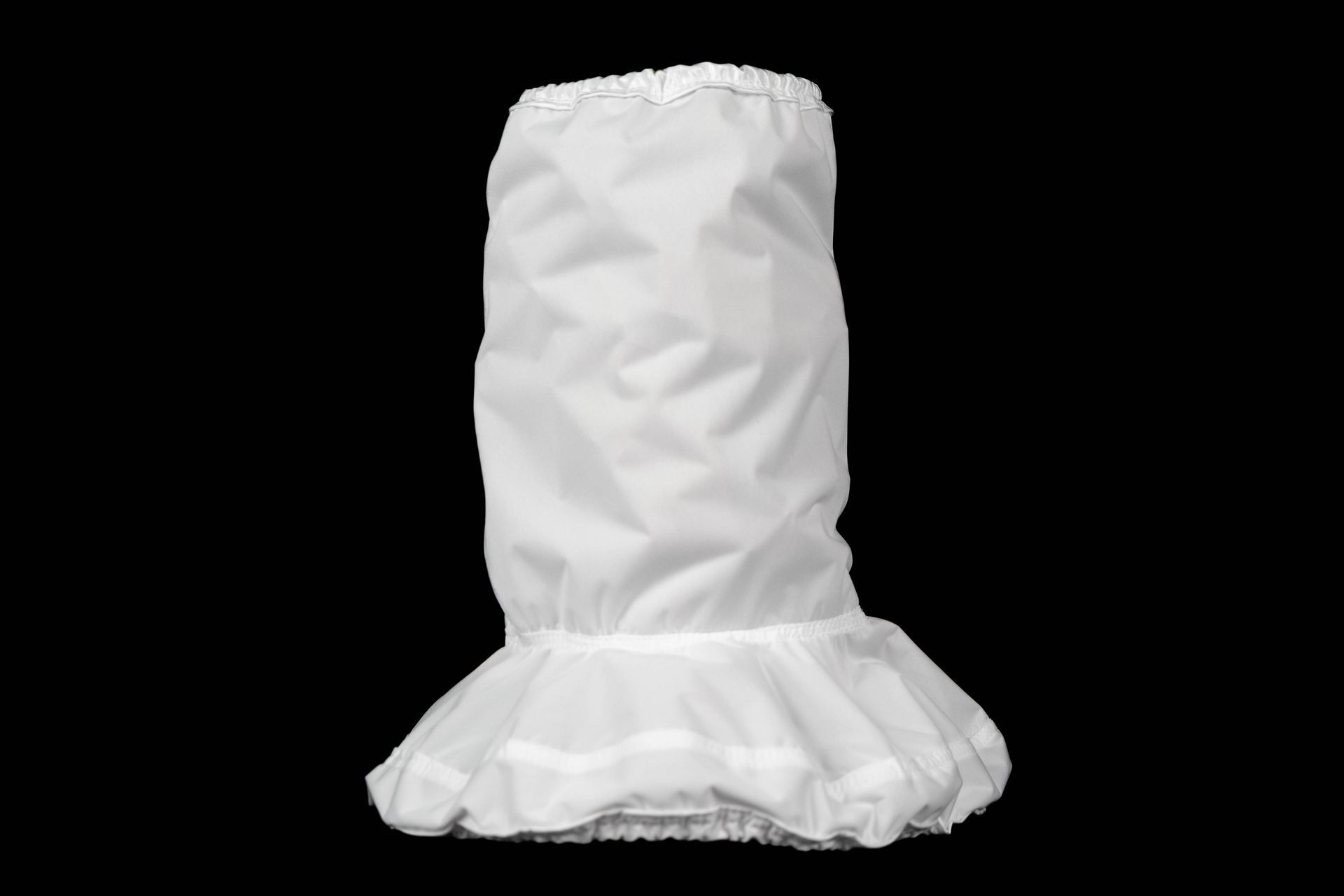

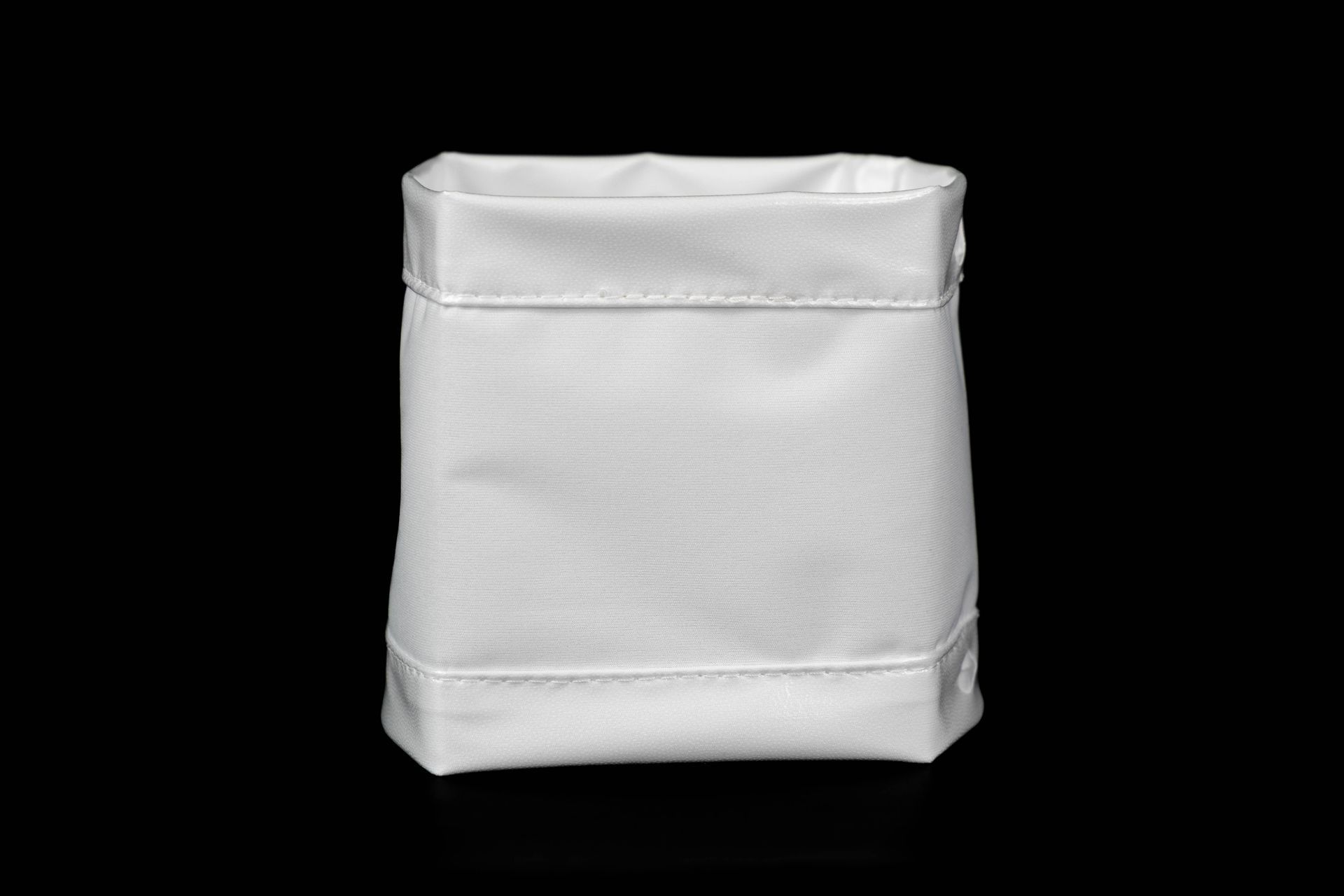

  • Polysilk: Mullen Burst/Tensile Strength >350 psi, 9 oz/yd², 0 cfm/ft² permeability, and temperature range of up to 300°F. Ideal for lightweight applications requiring a soft touch and waterproof qualities.
  • Polyester Vinyl Coated (VCP): Mullen Burst/Tensile Strength >350 psi, 18 oz/yd², 0 cfm/ft² permeability, with a temperature range of 0° to 180°F continuous. Features oil, mold, and mildew resistance.
  • PVC 0.04: Versatile and durable for various applications.

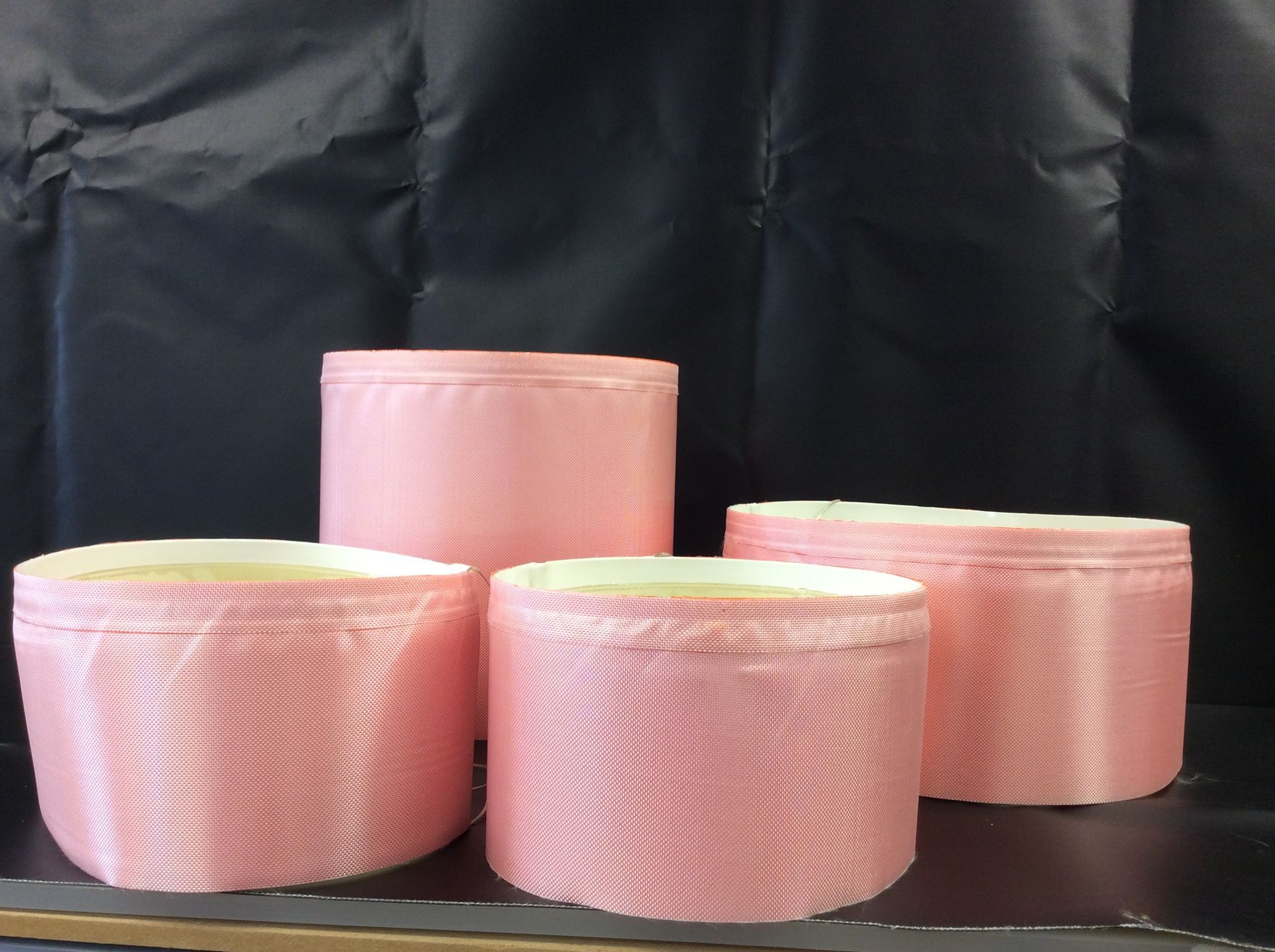

  • Nylon Ballistic: Mullen Burst/Tensile Strength >500 psi, 205 (+/-5G/M2), with temperature resistance from -67° to 500°F. Suited for environments requiring high abrasion and tear resistance.

Customization in terms of size, thickness, and specific material properties is available to cater to unique industrial needs. Siftex's extensive range of materials allows for specialized adaptations to meet precise specifications.

  • Flanges
  • Top covers
  • Bolt holes

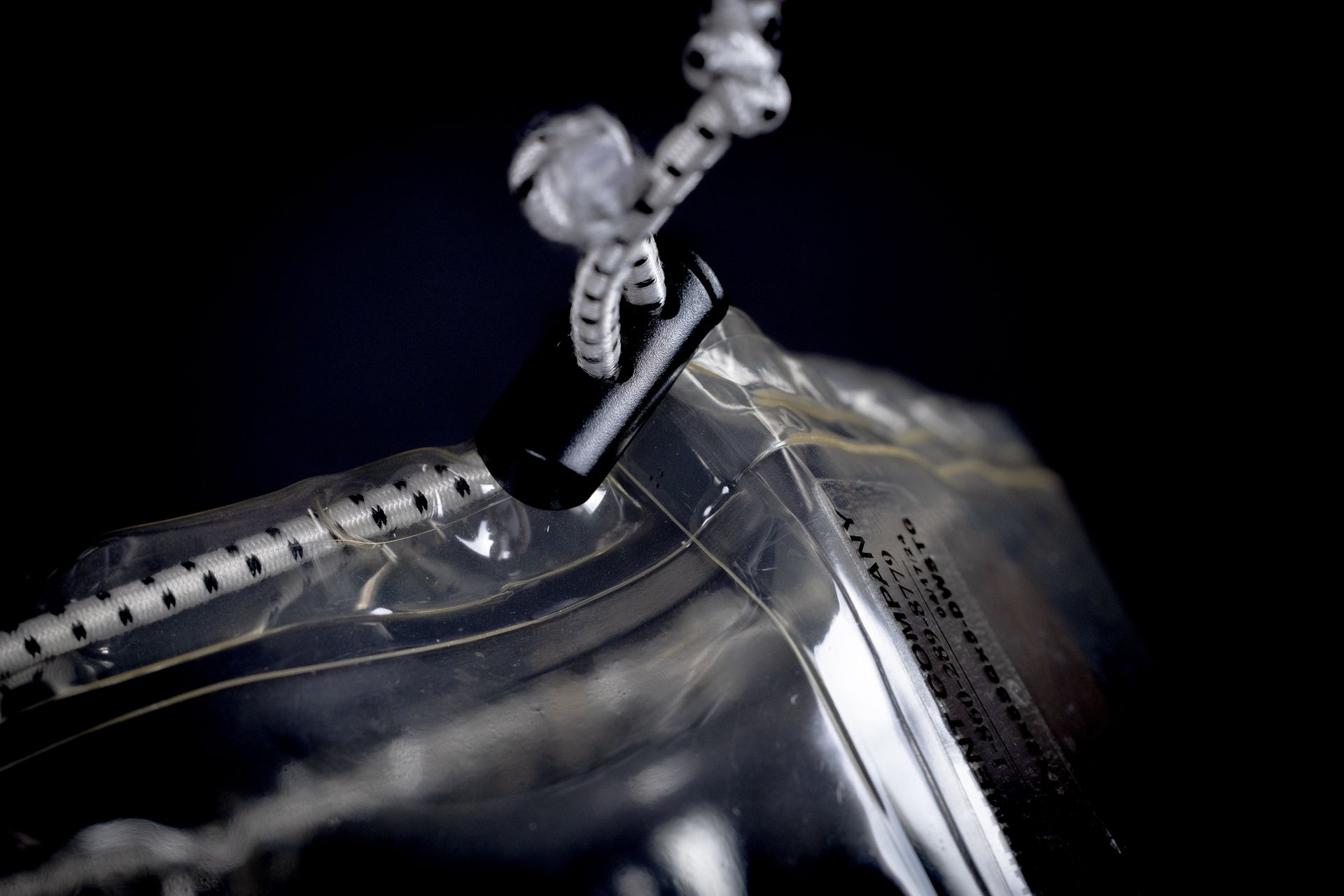

  • Shock cord hems
  • Integrated band clamp hems
  • Drawstrings
  • Grommets

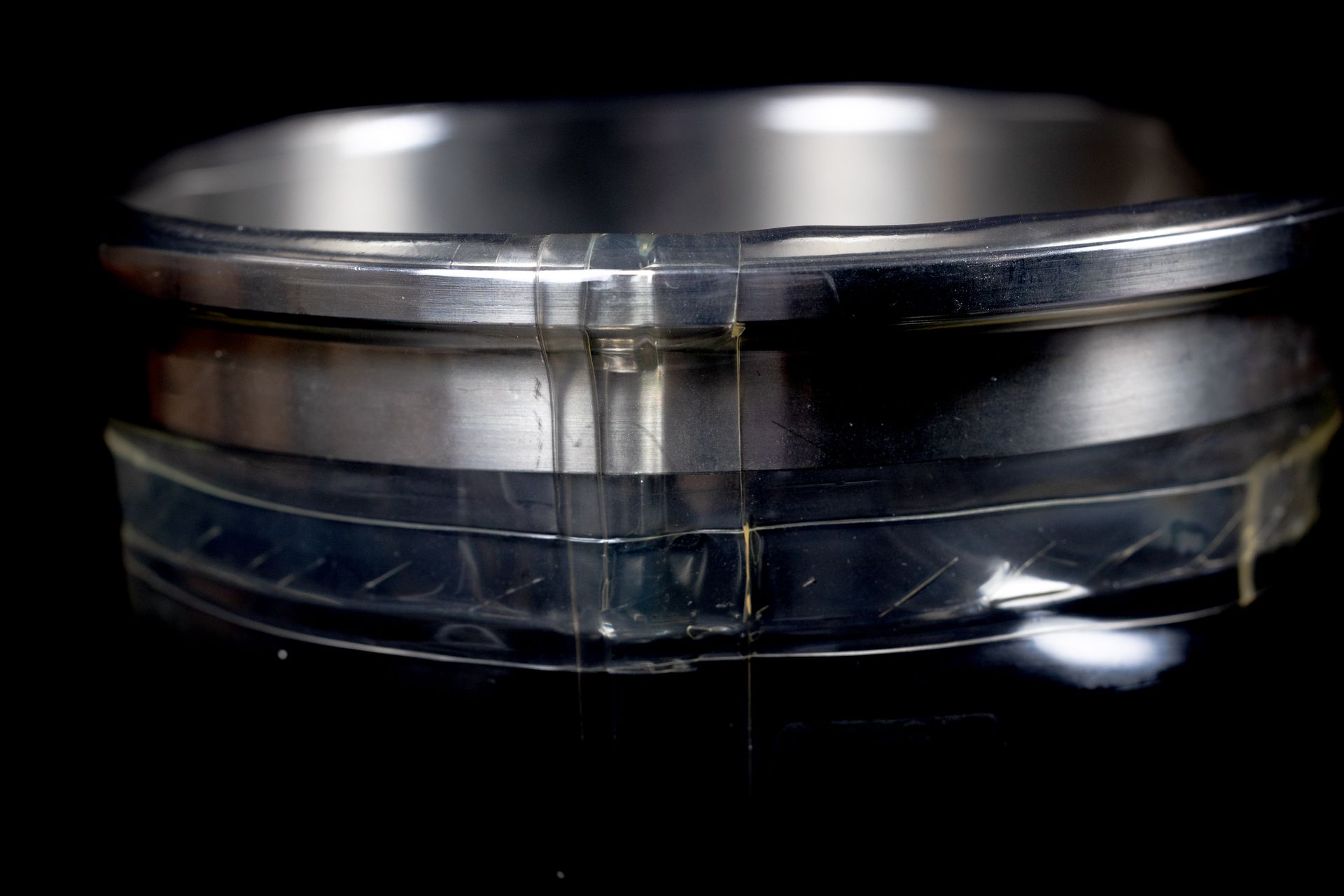

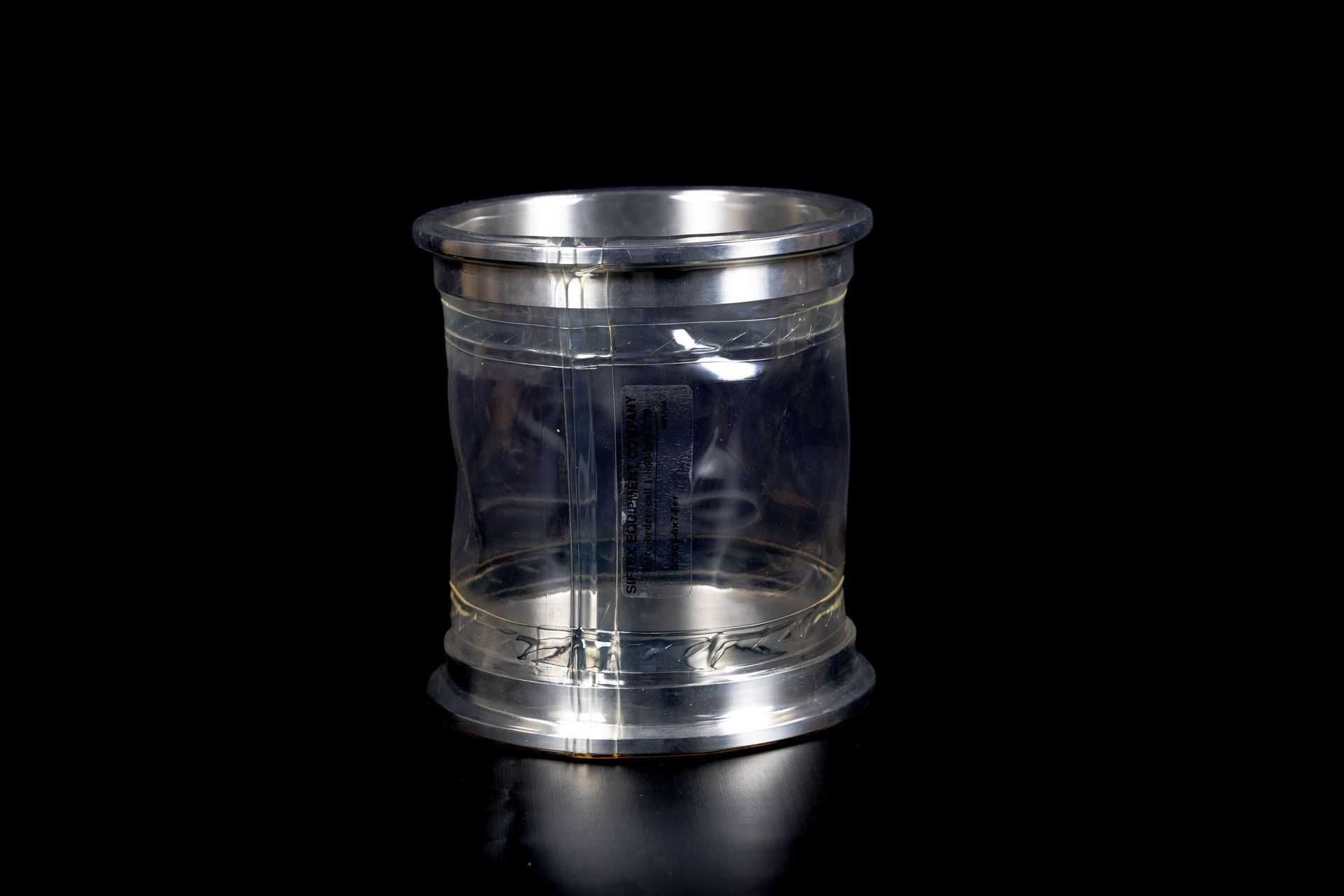

  • Stainless steel rings

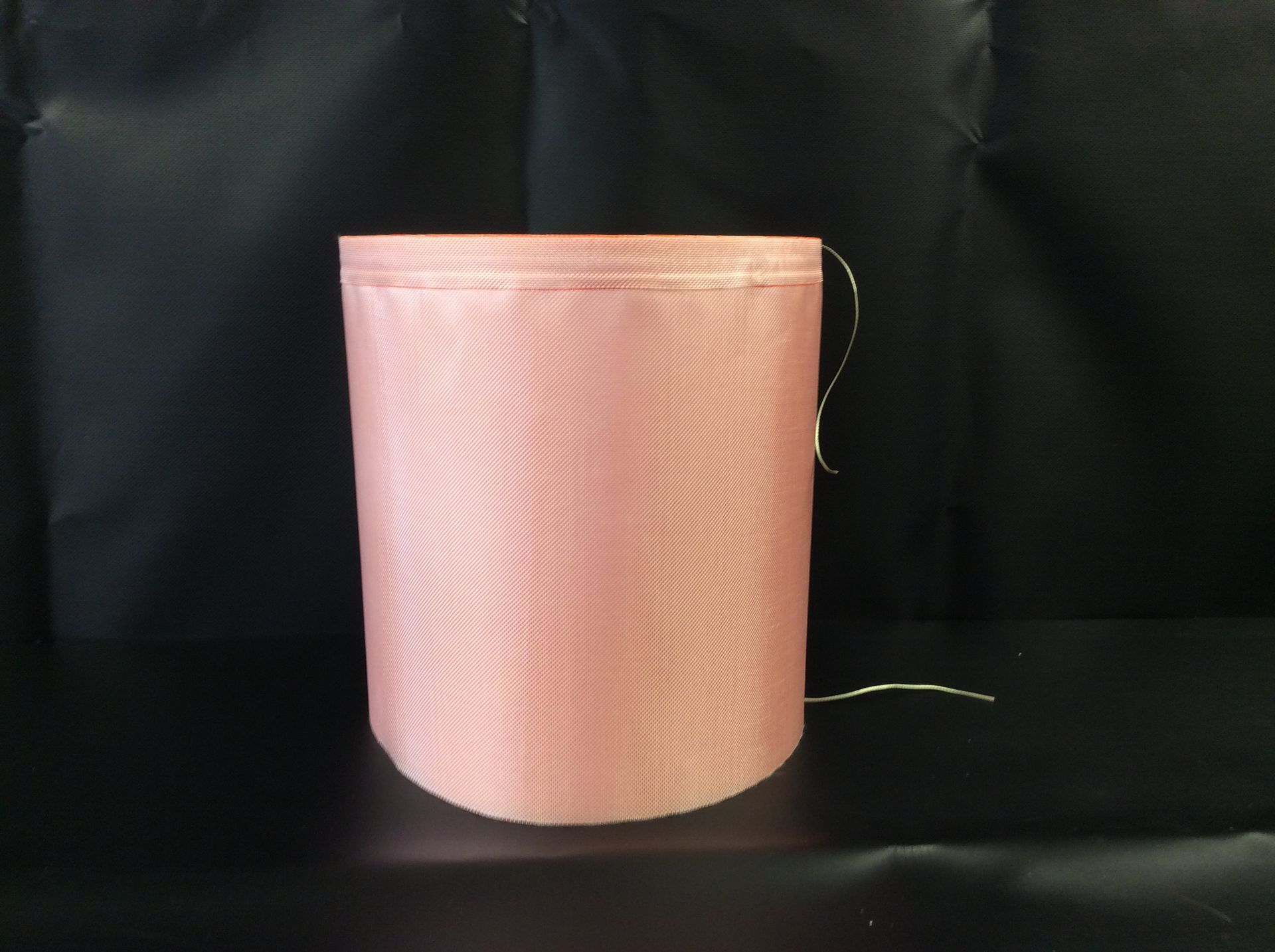

  • Grounding wires
  • Other customizations available

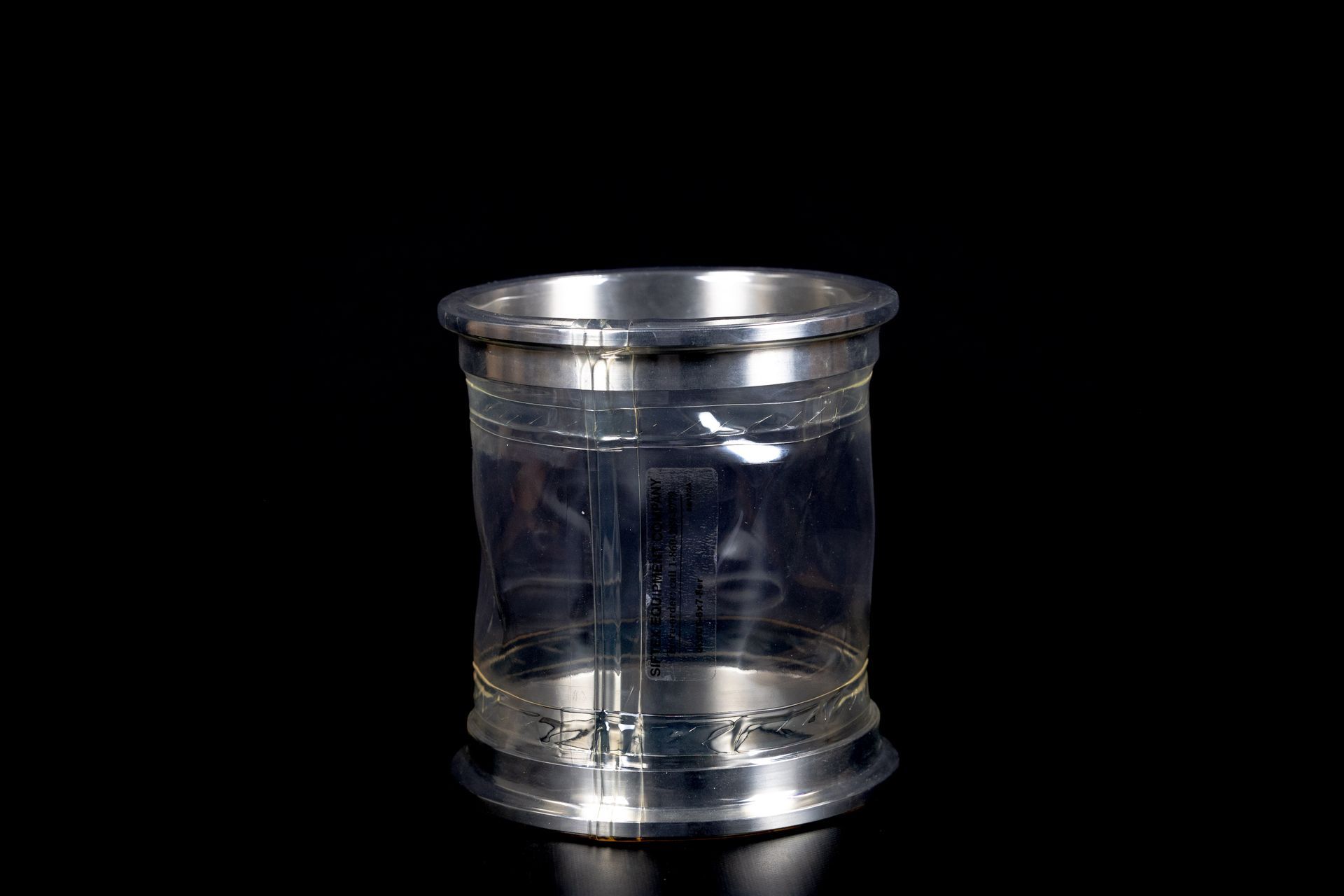

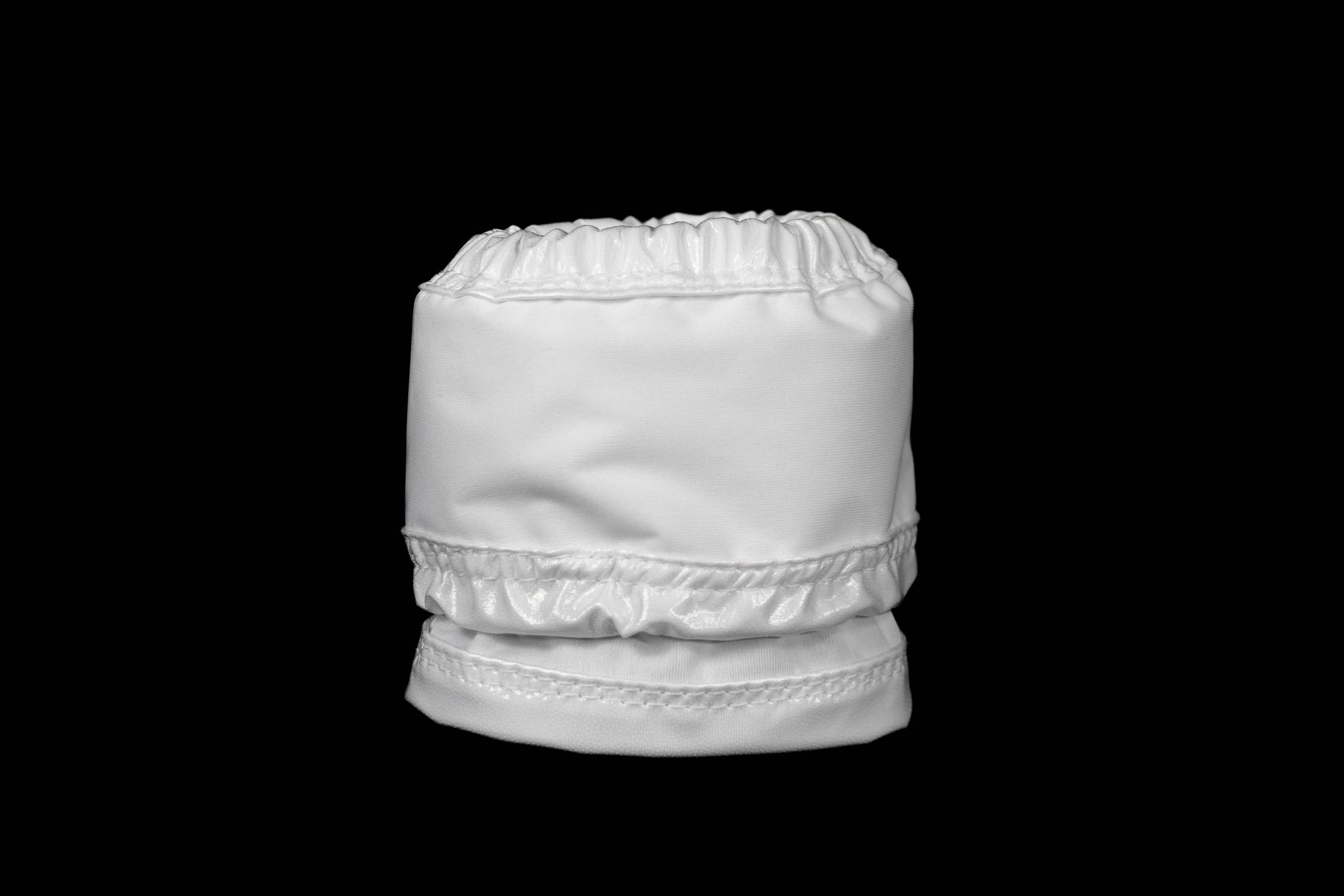

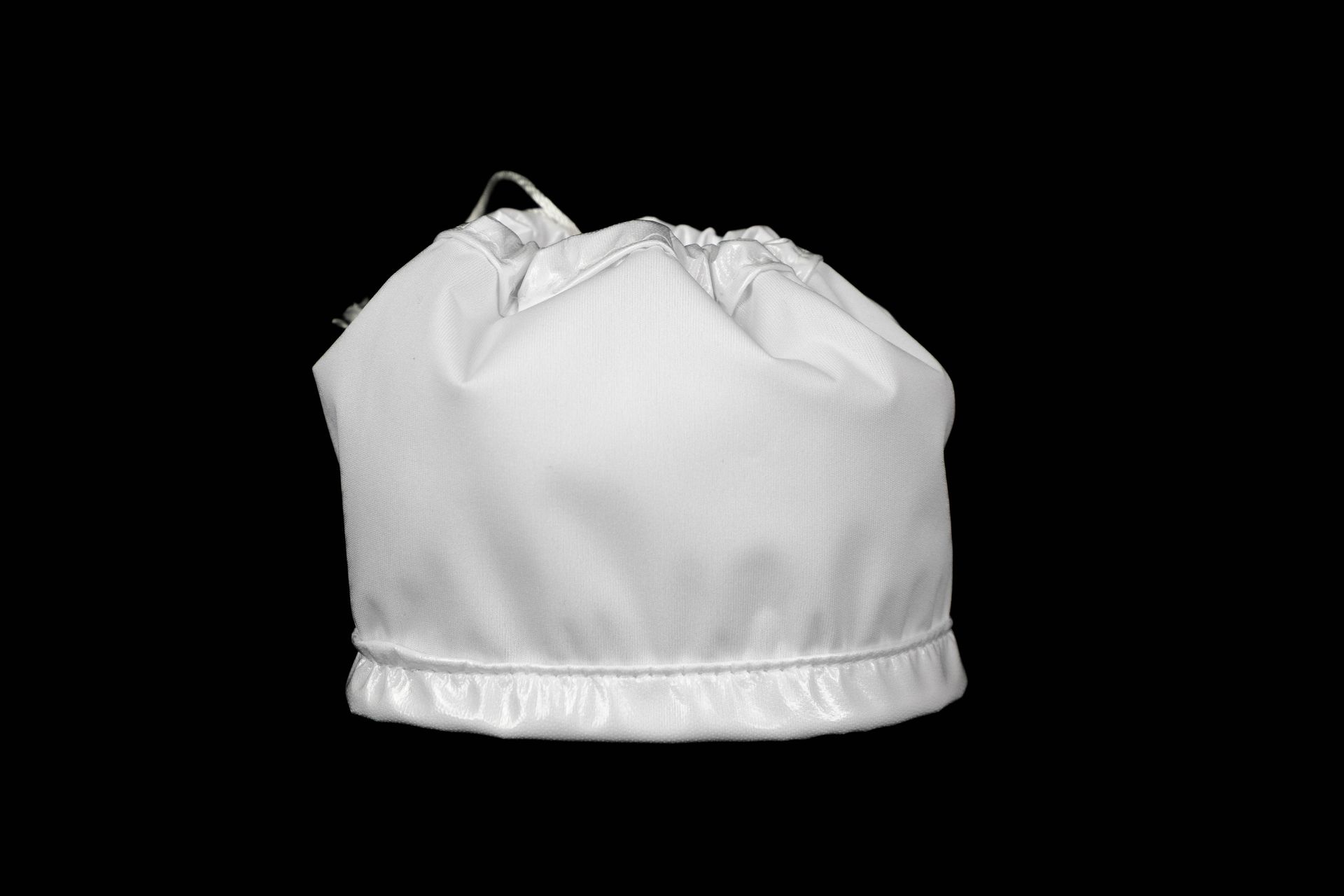

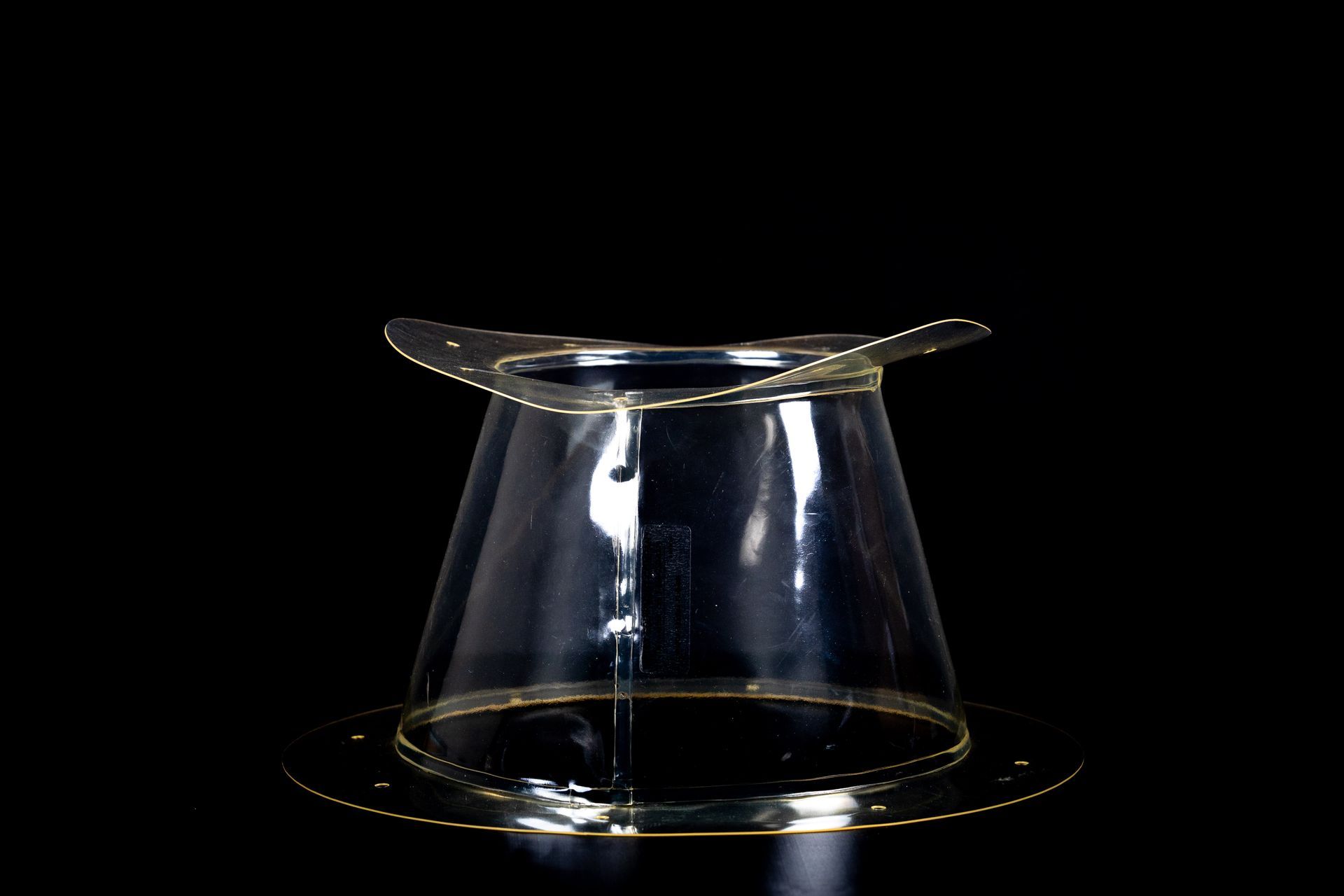

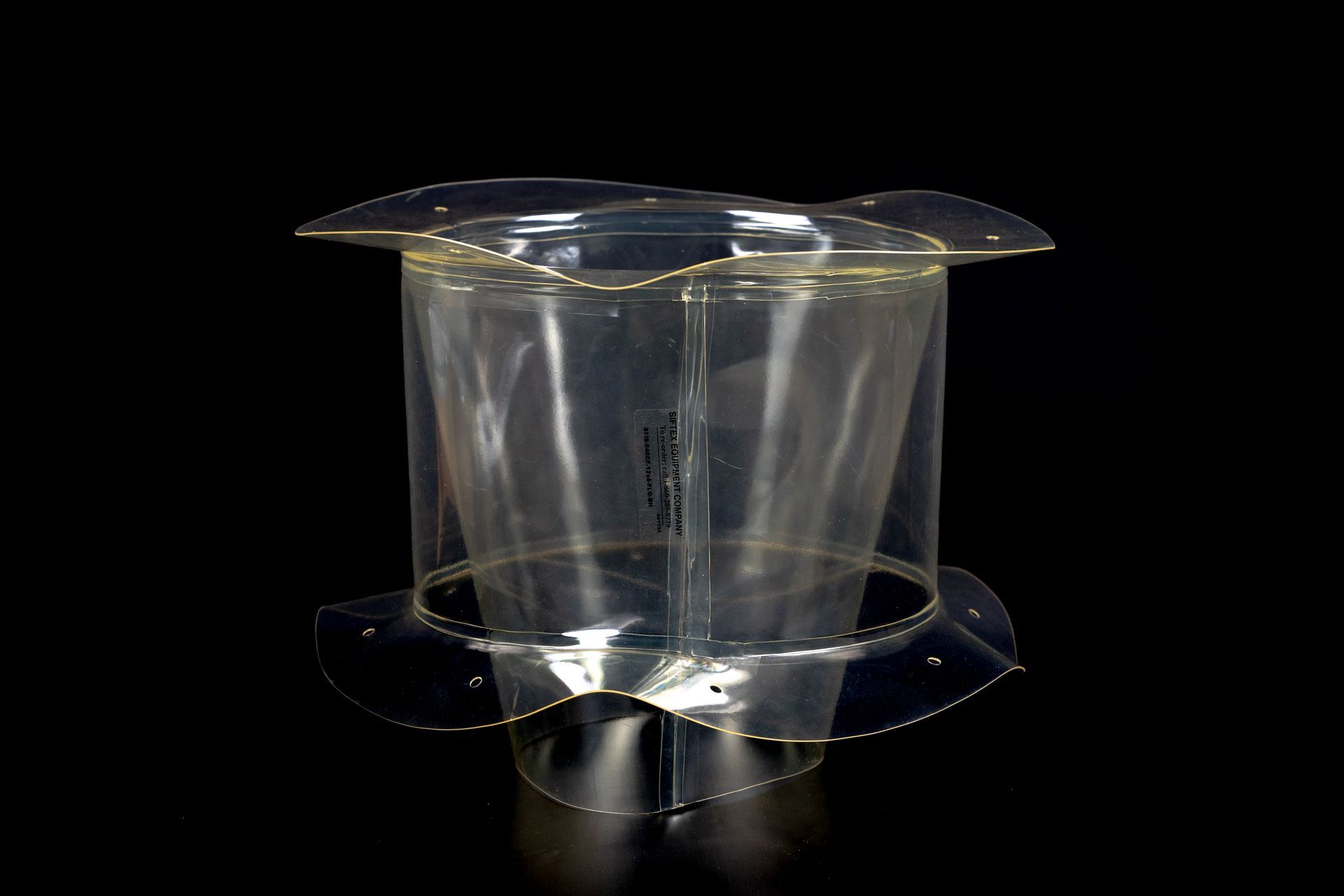

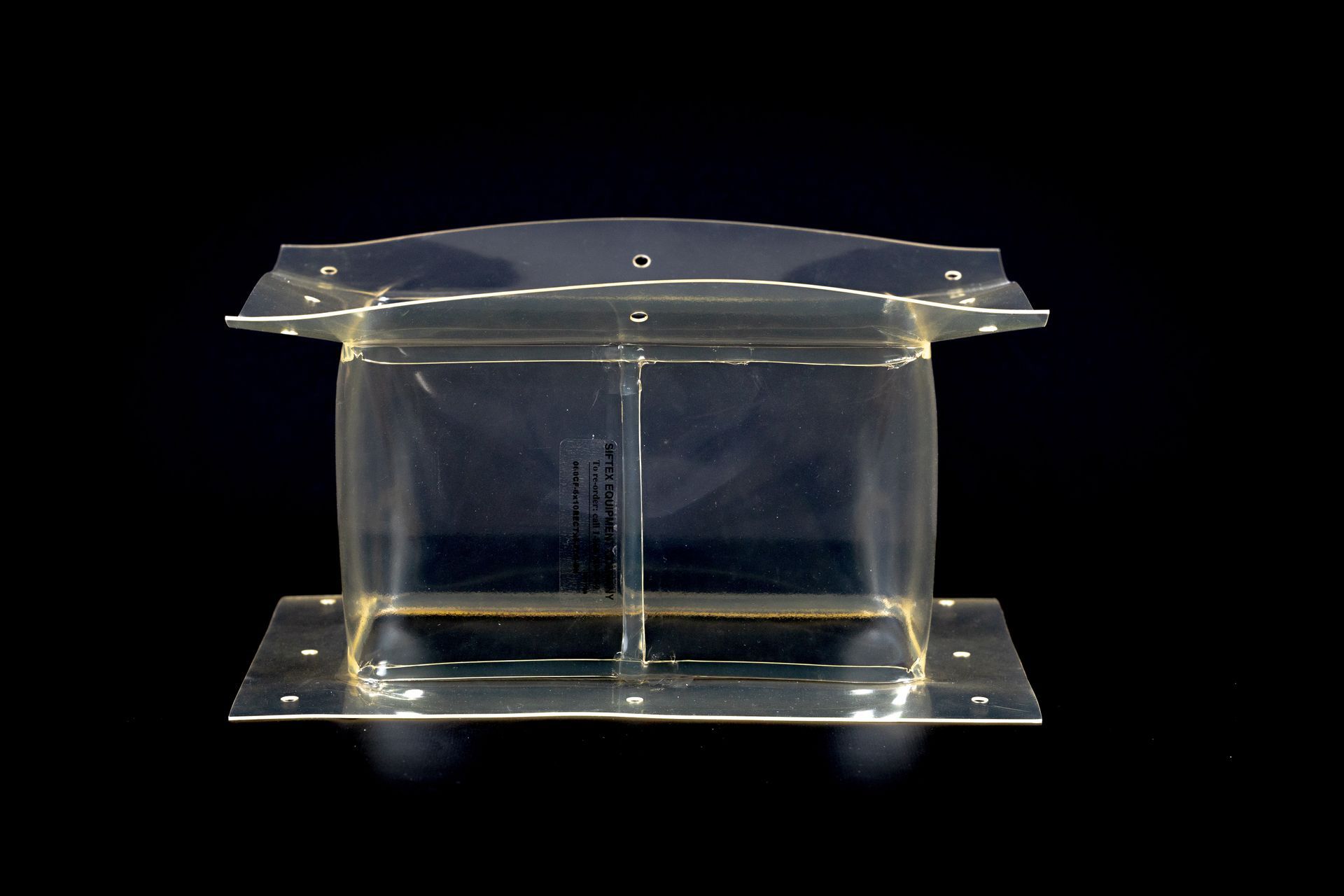

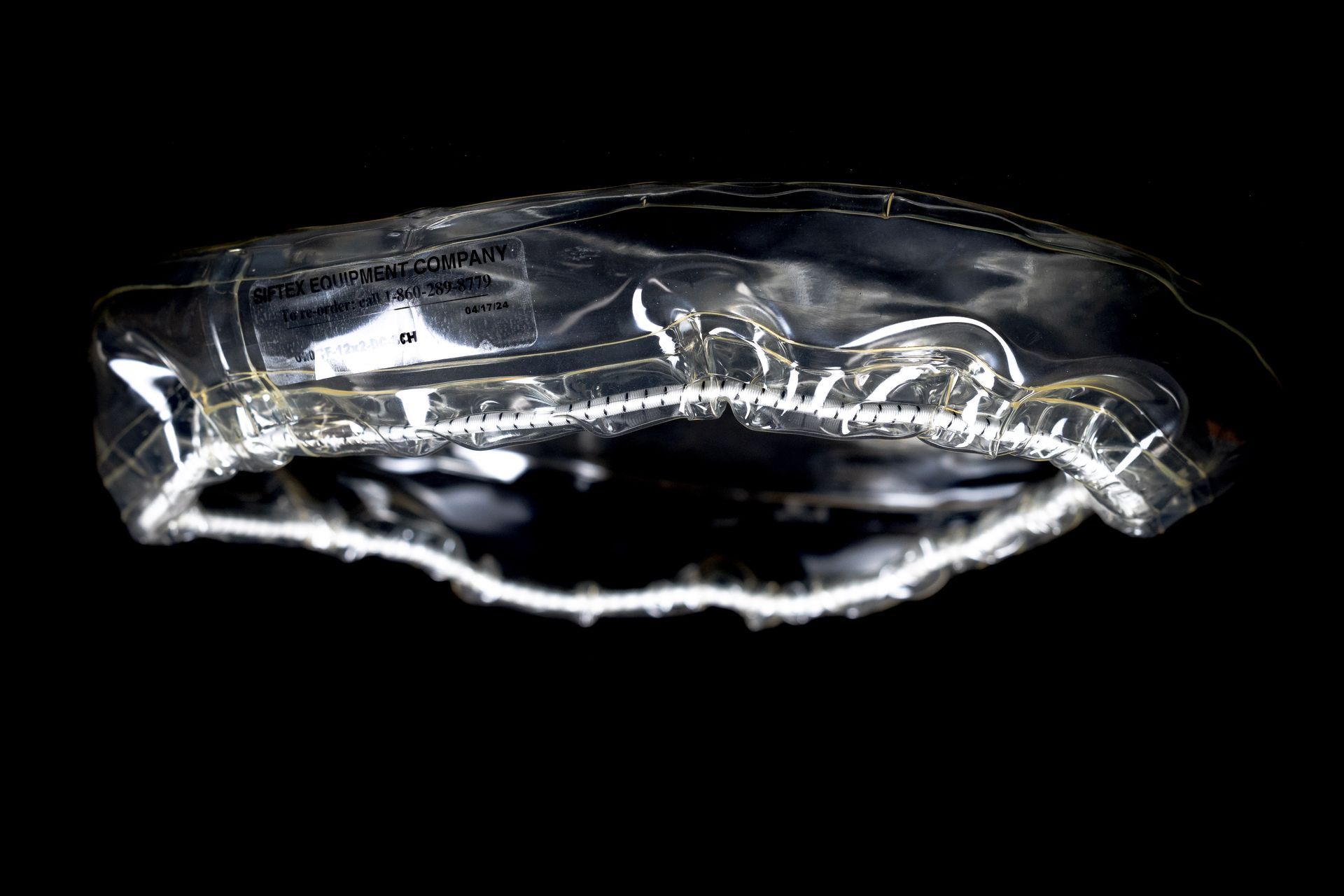

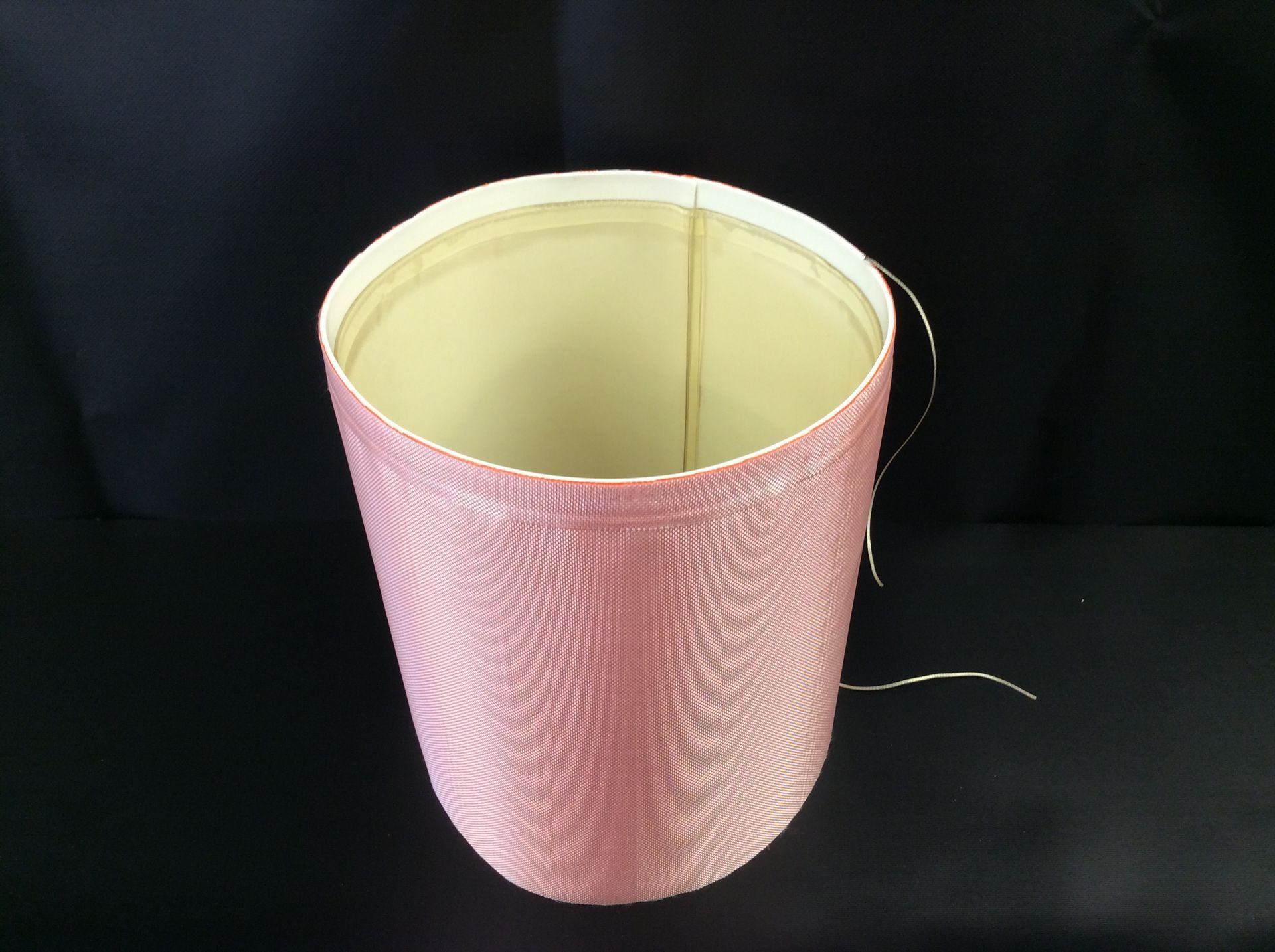

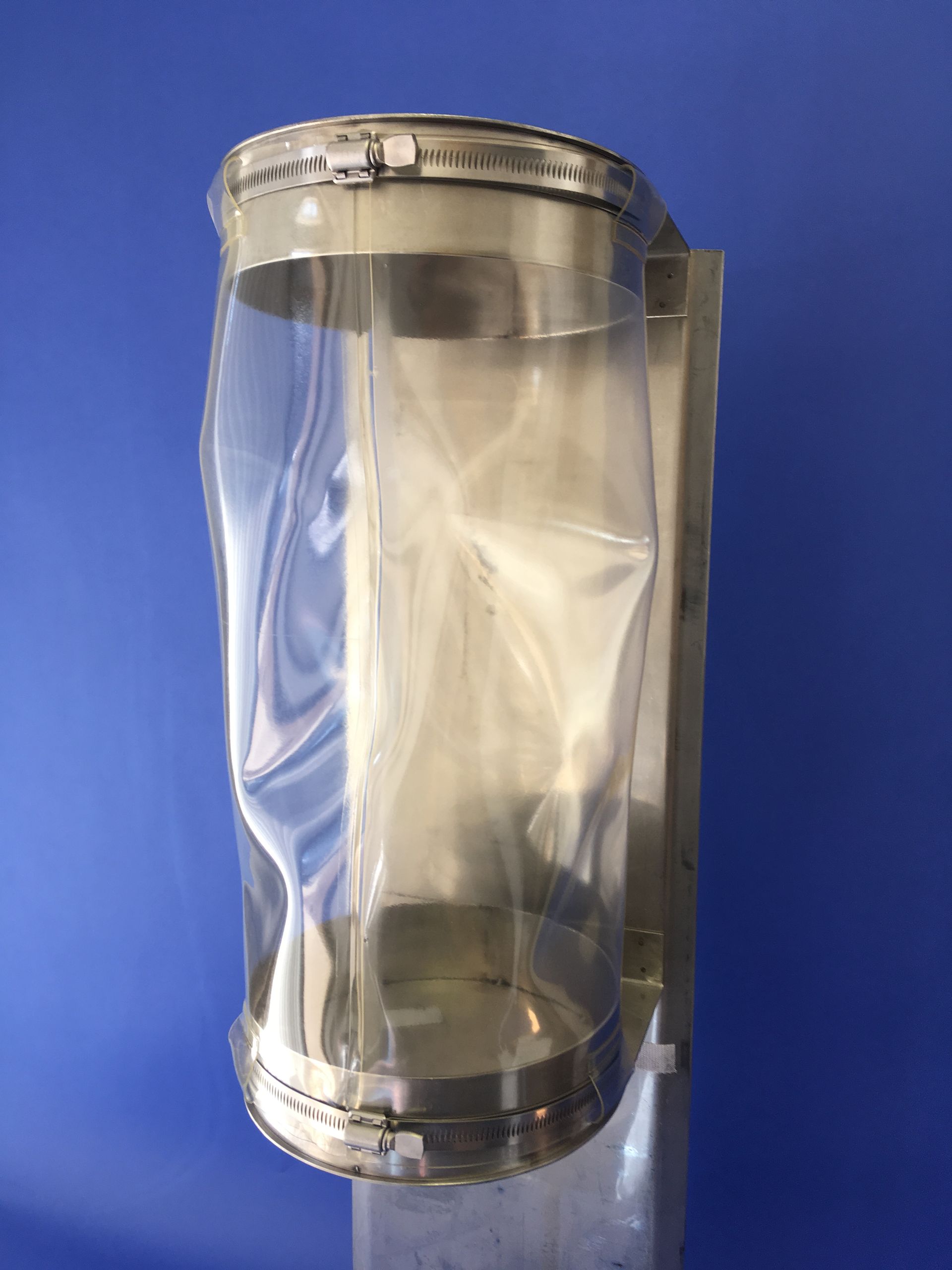

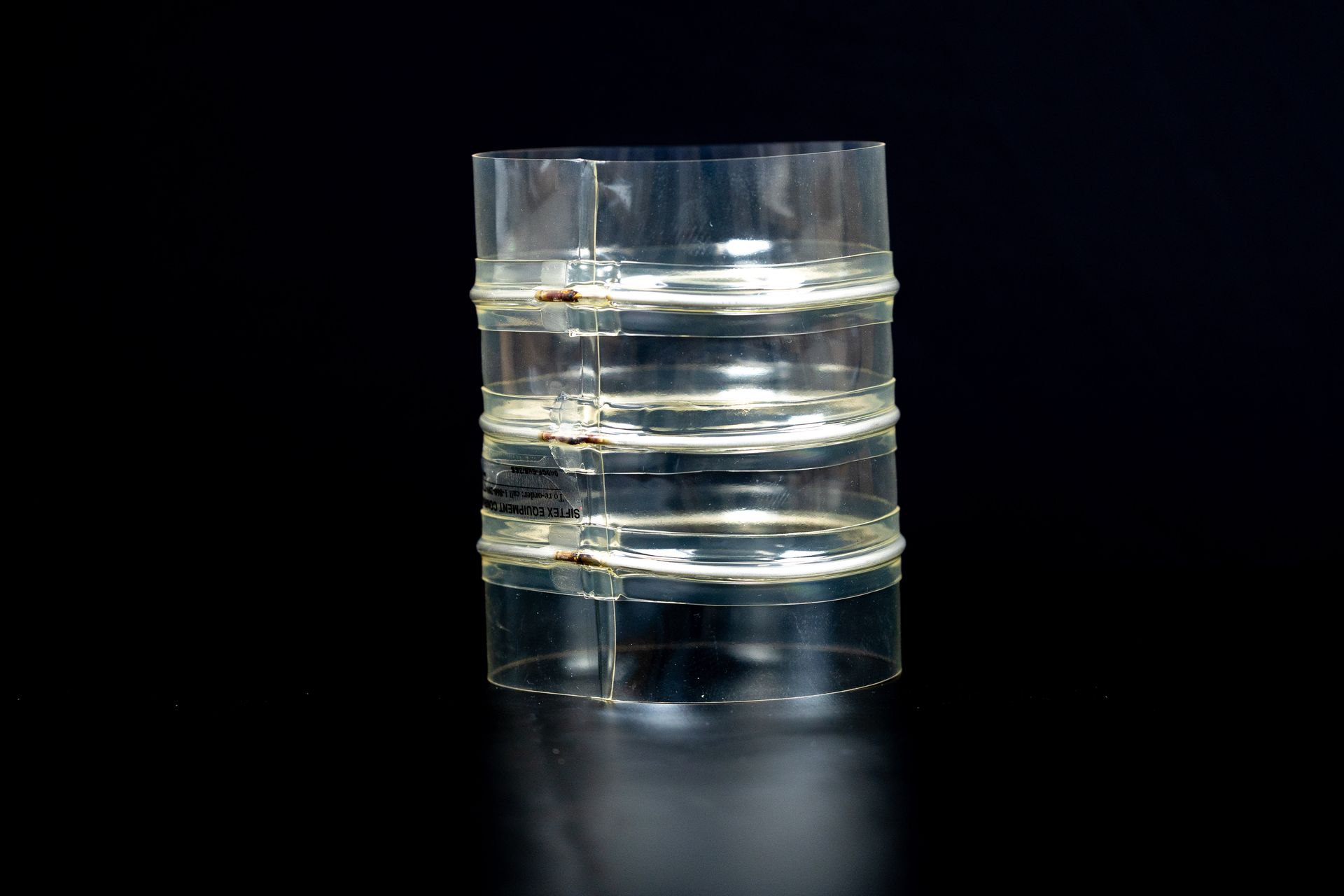

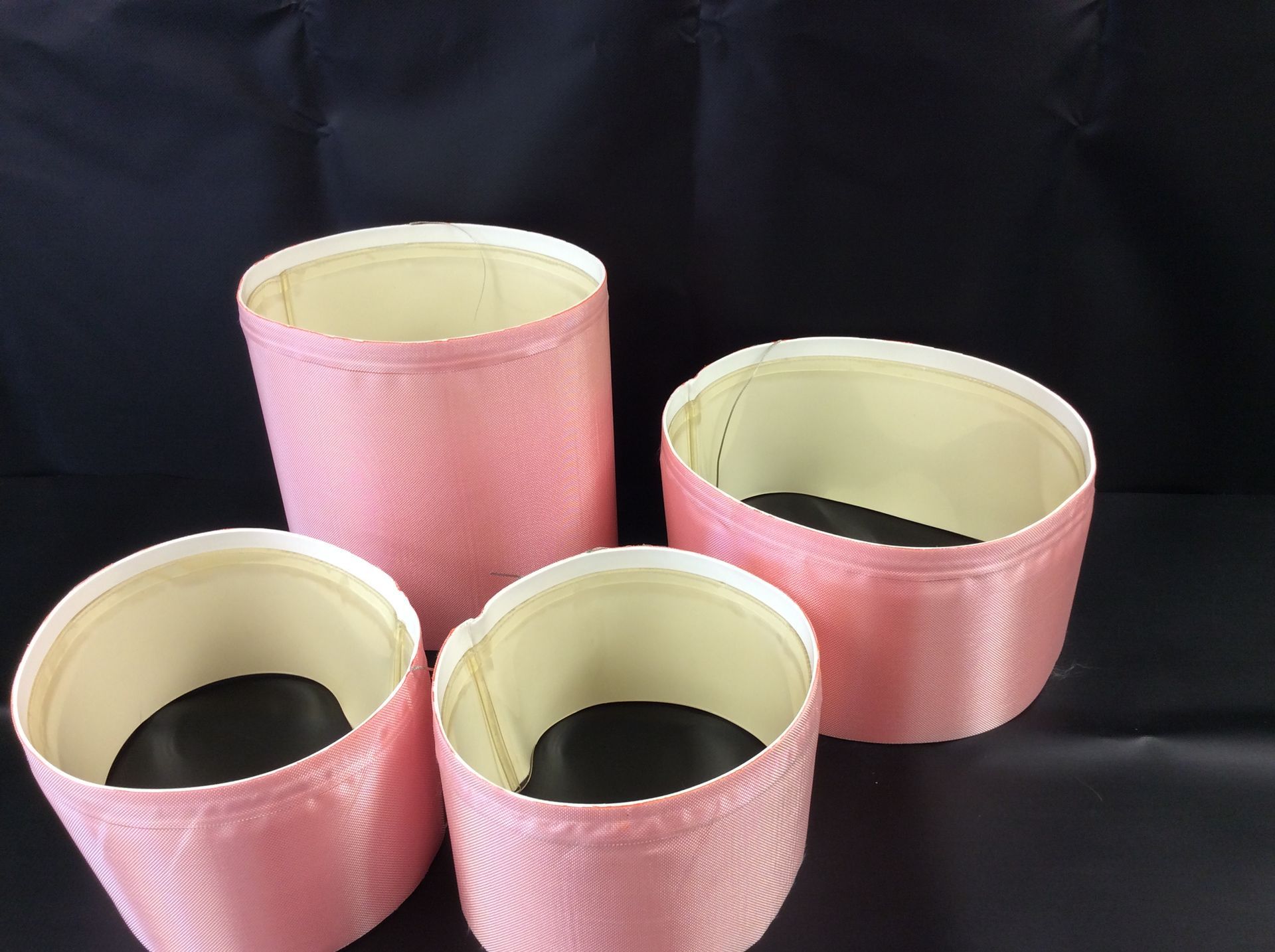

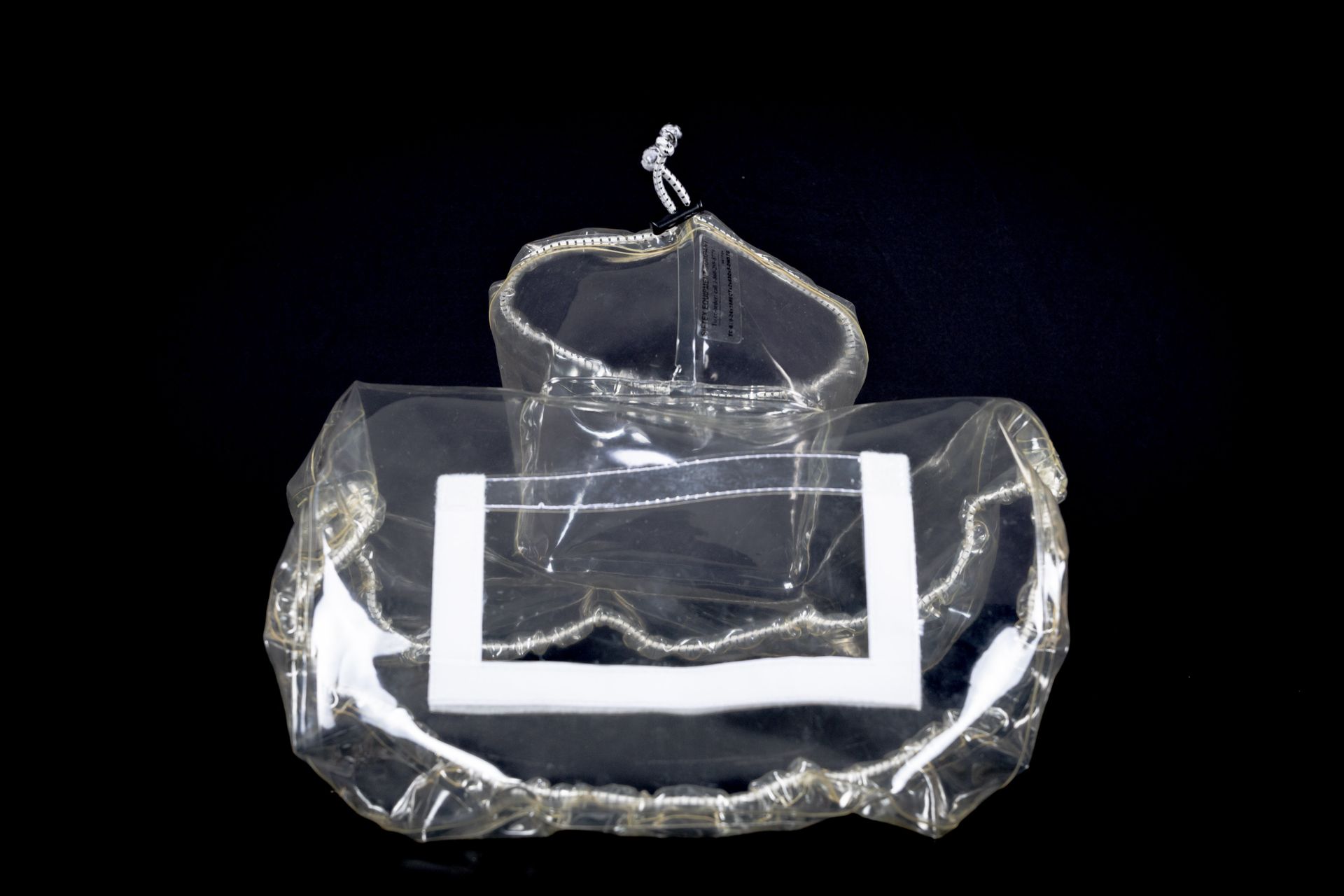

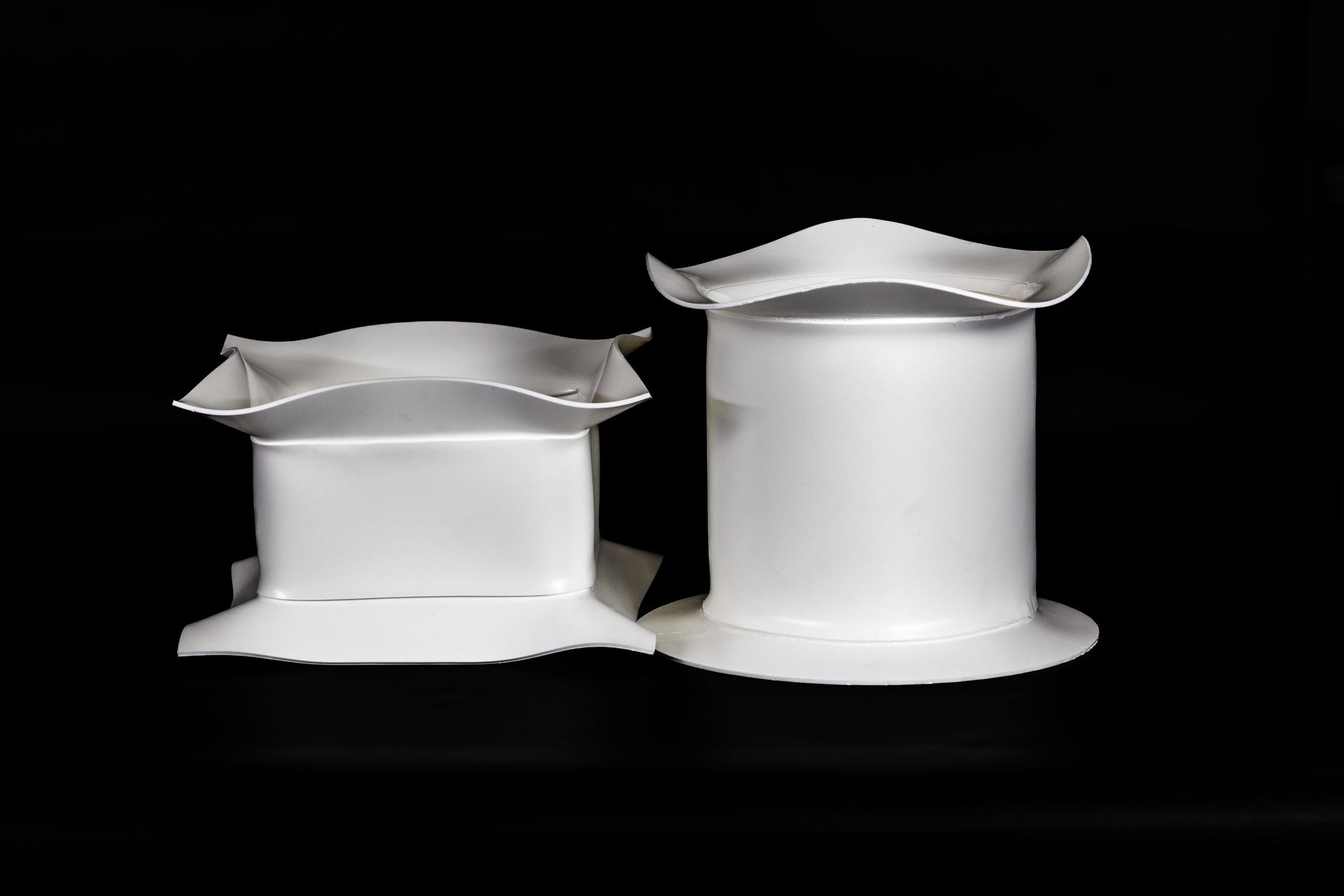

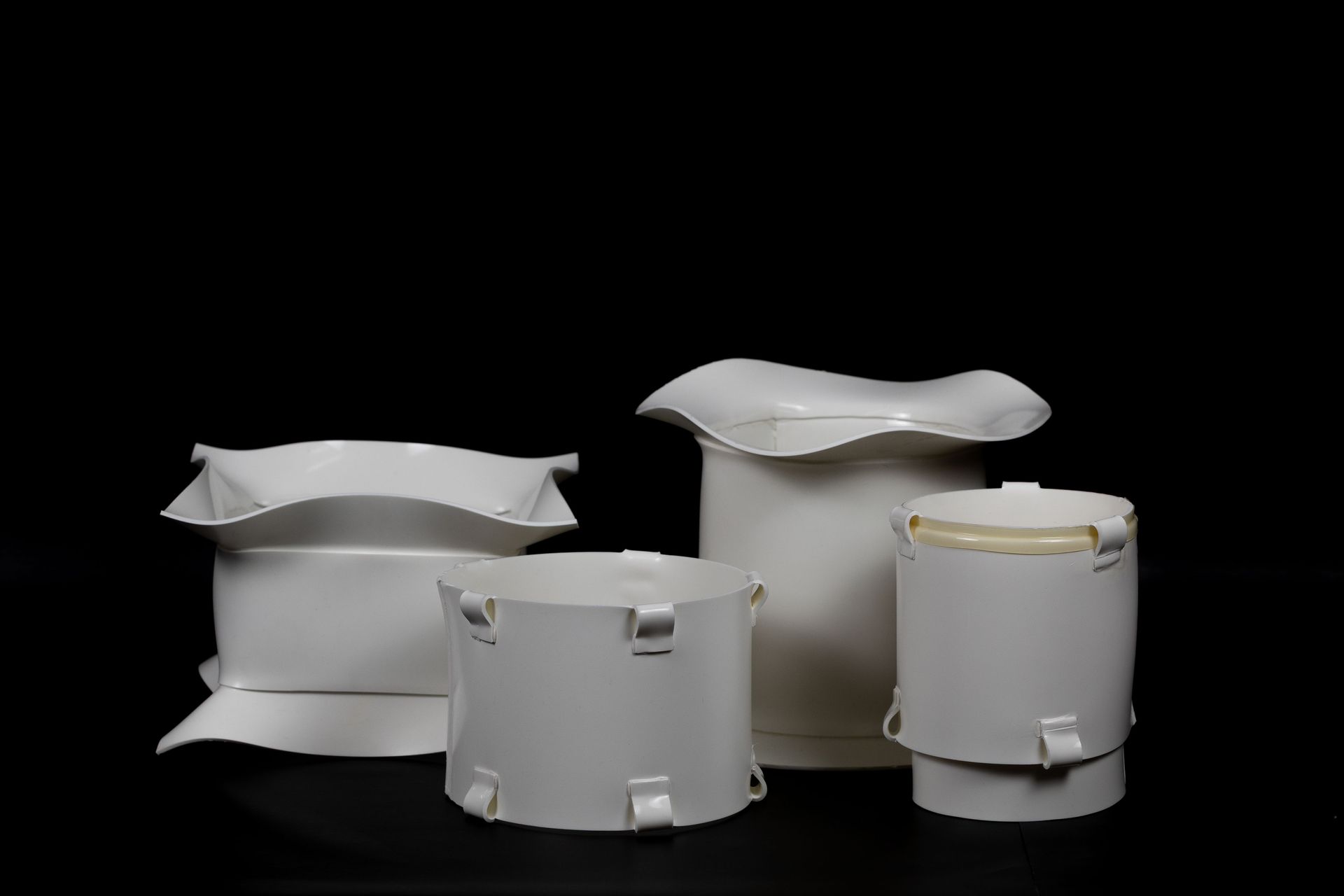

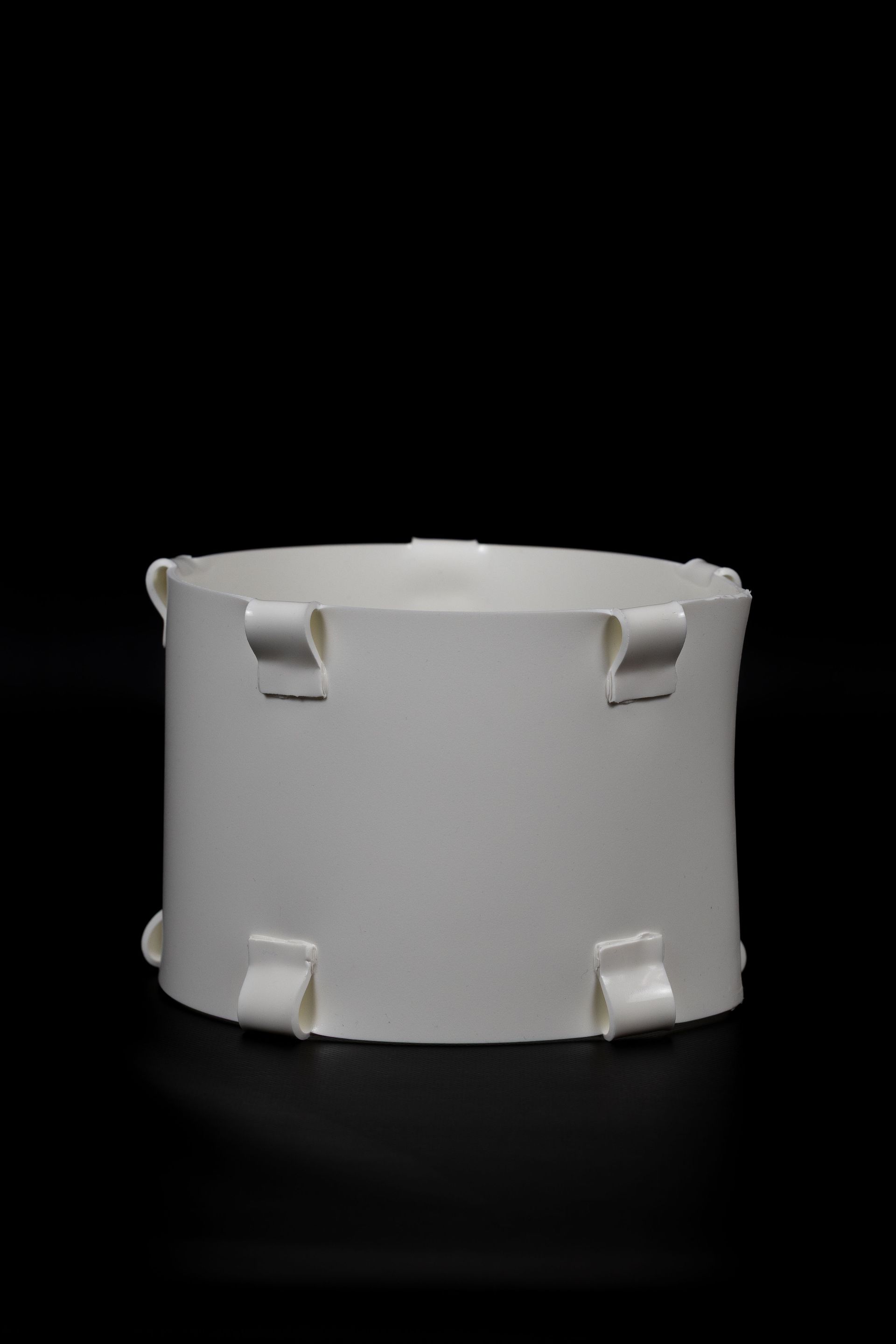

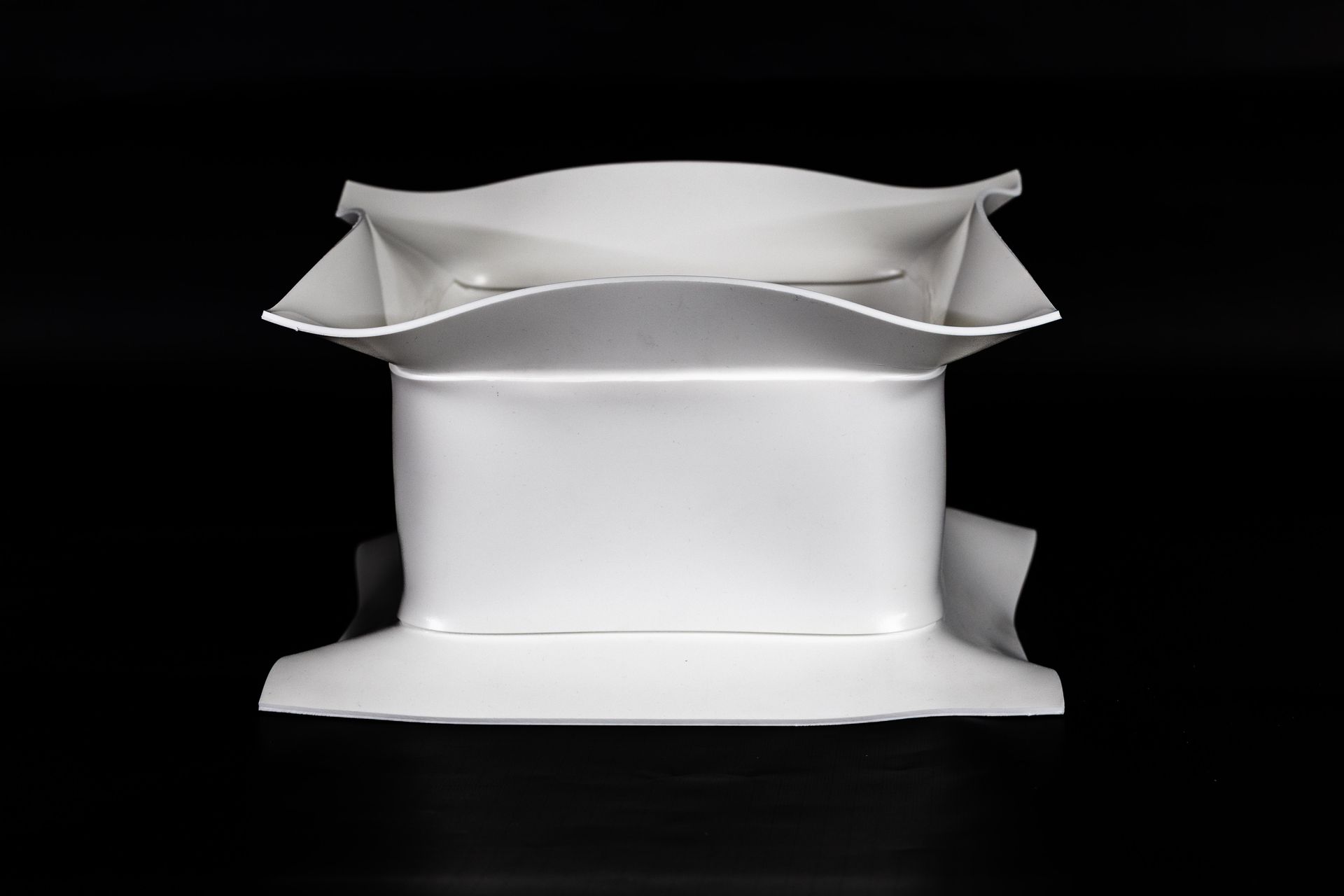

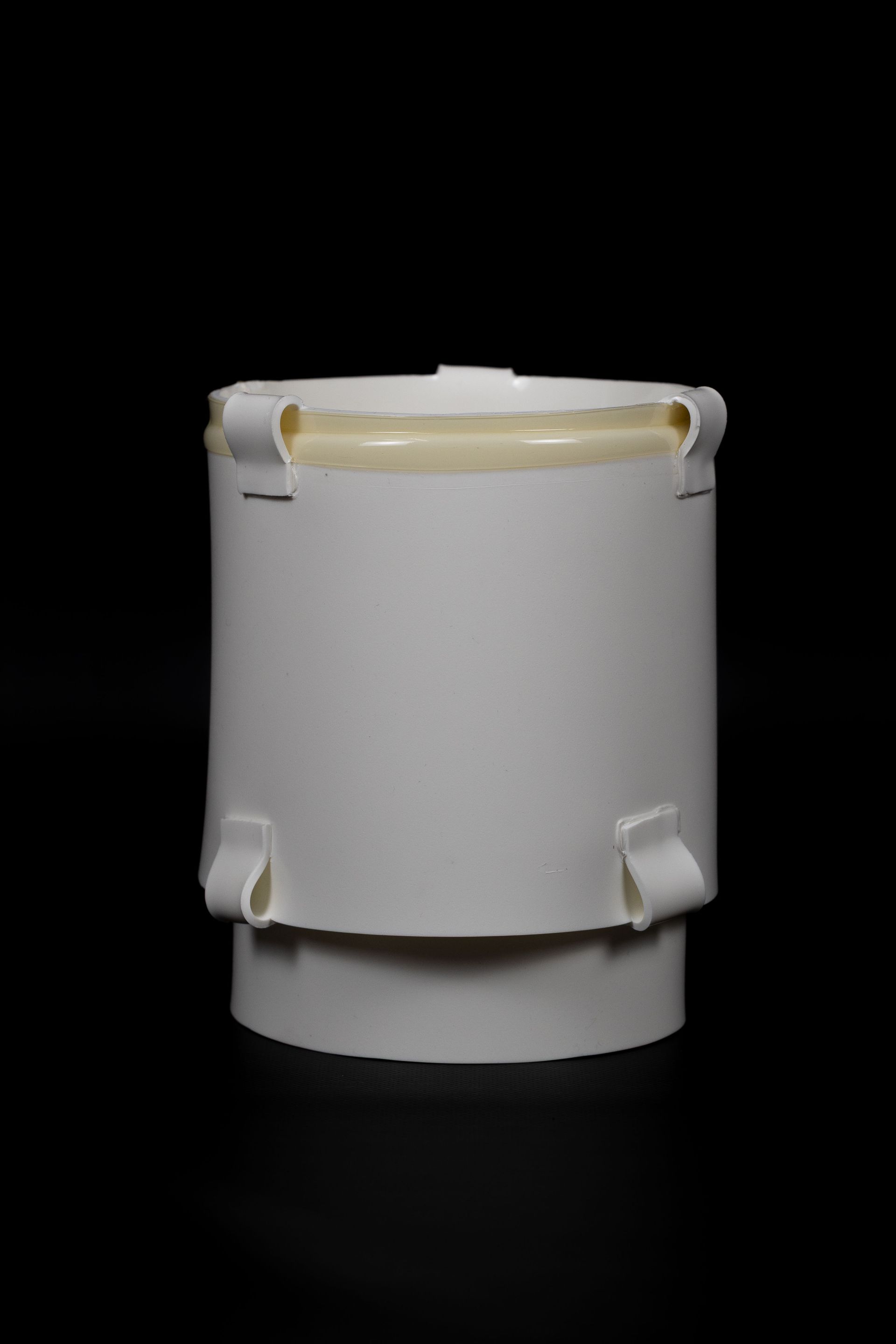

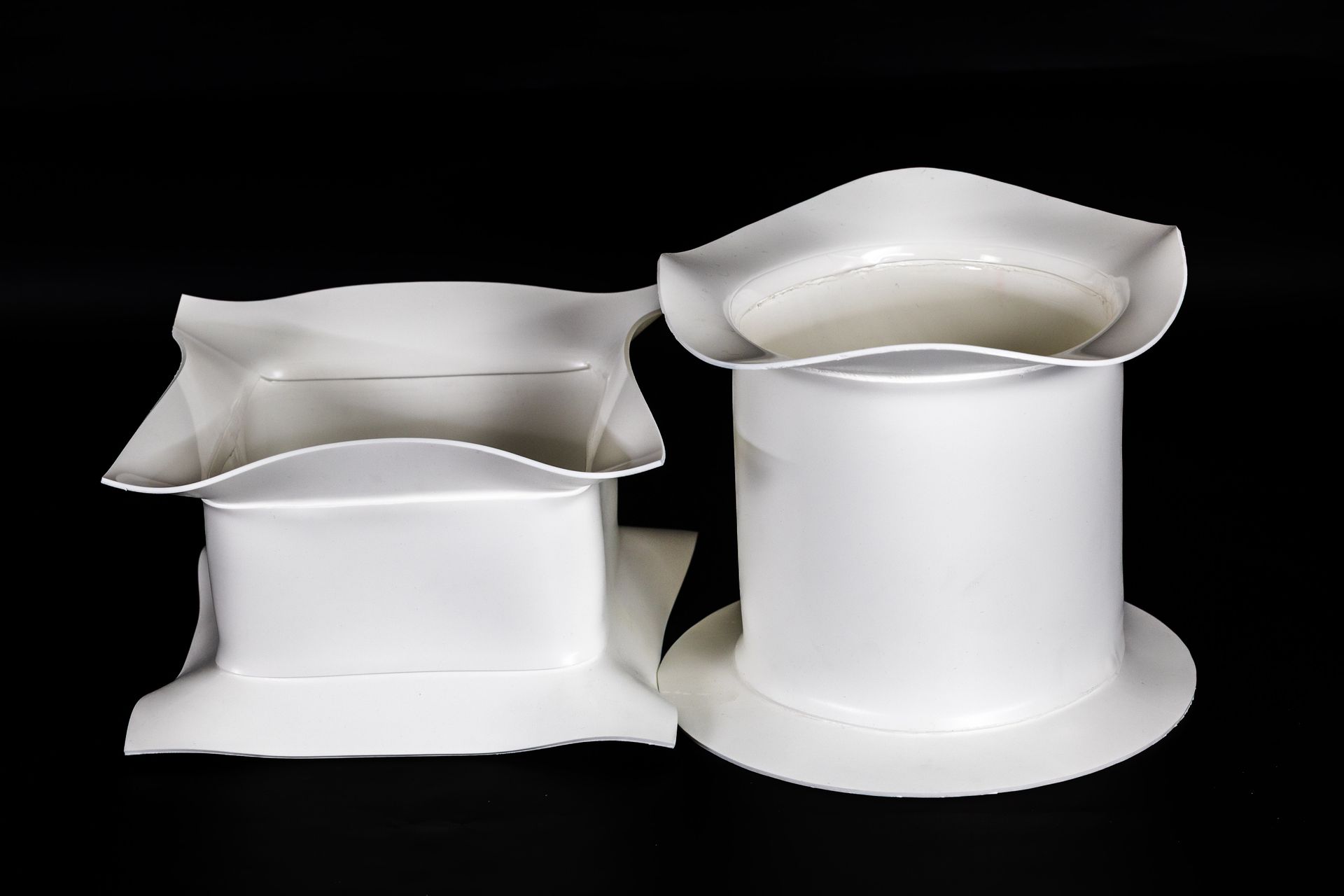

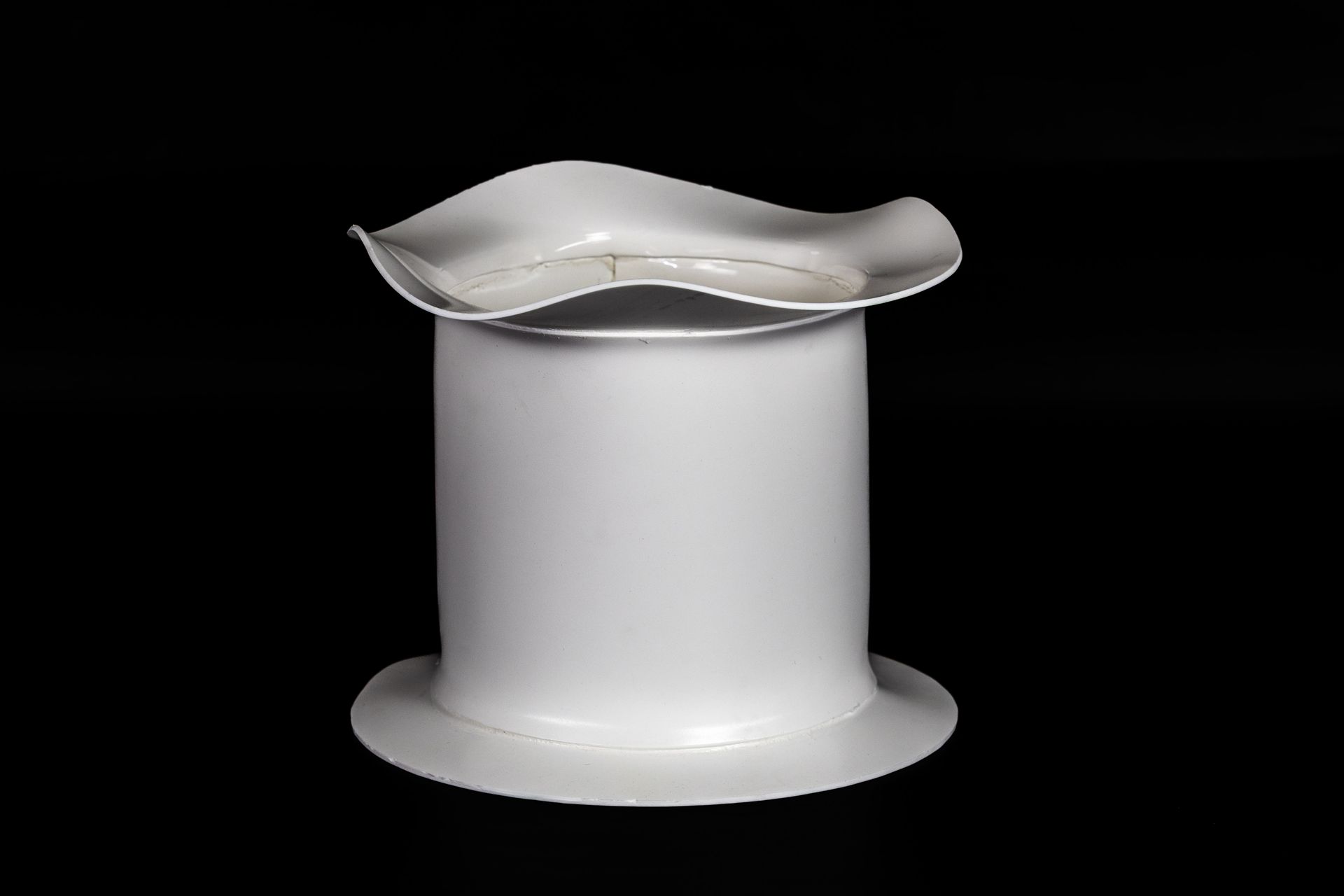

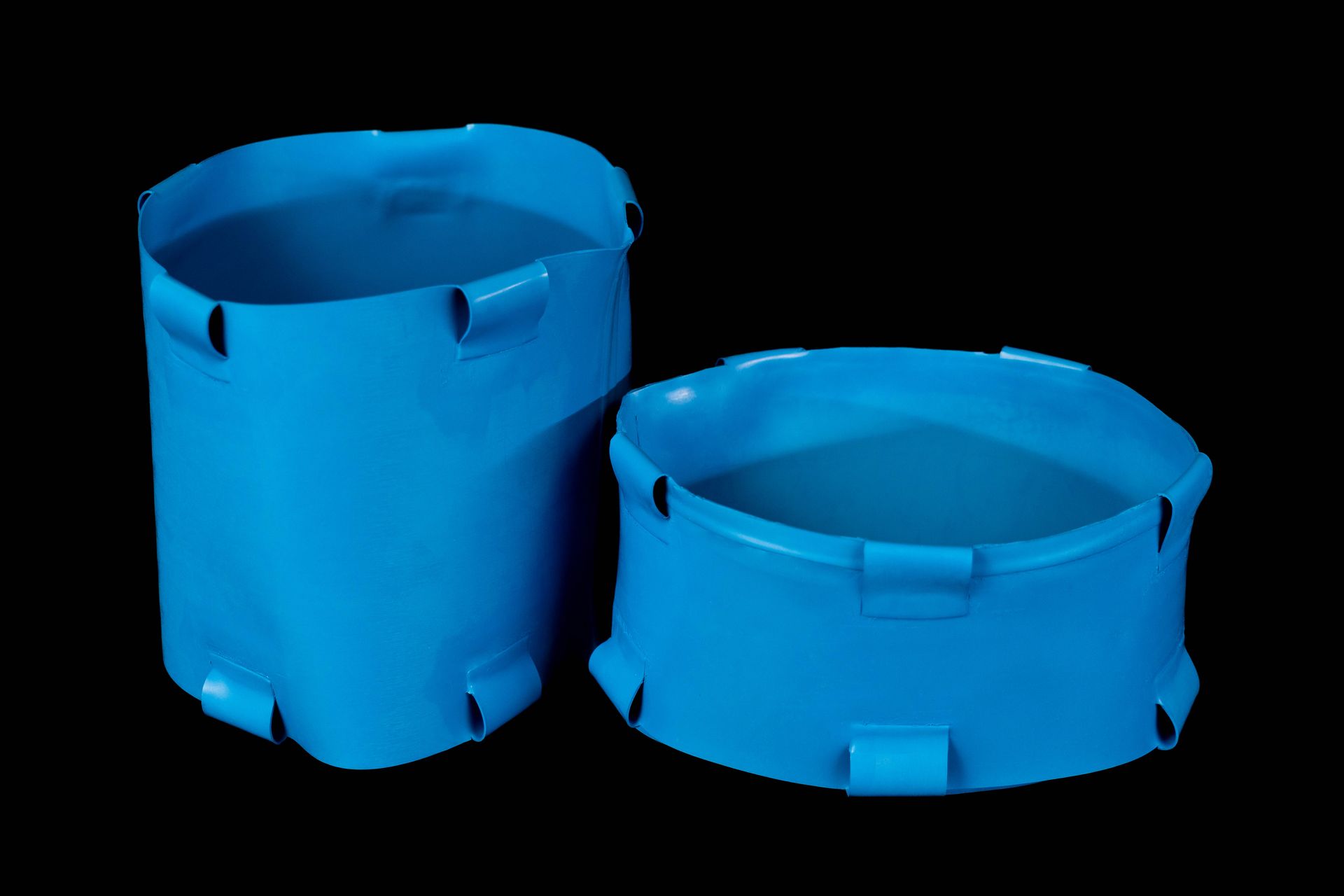

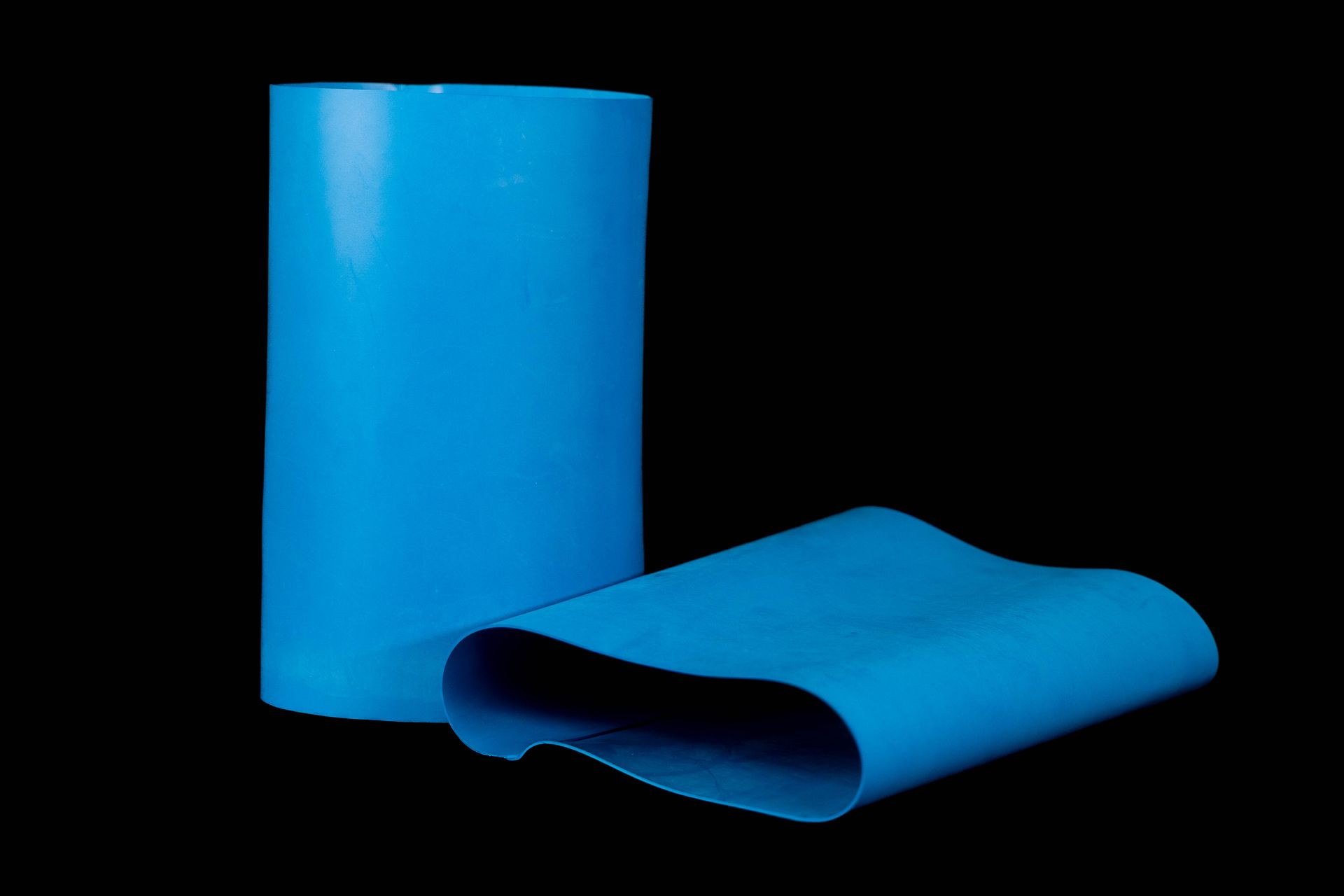

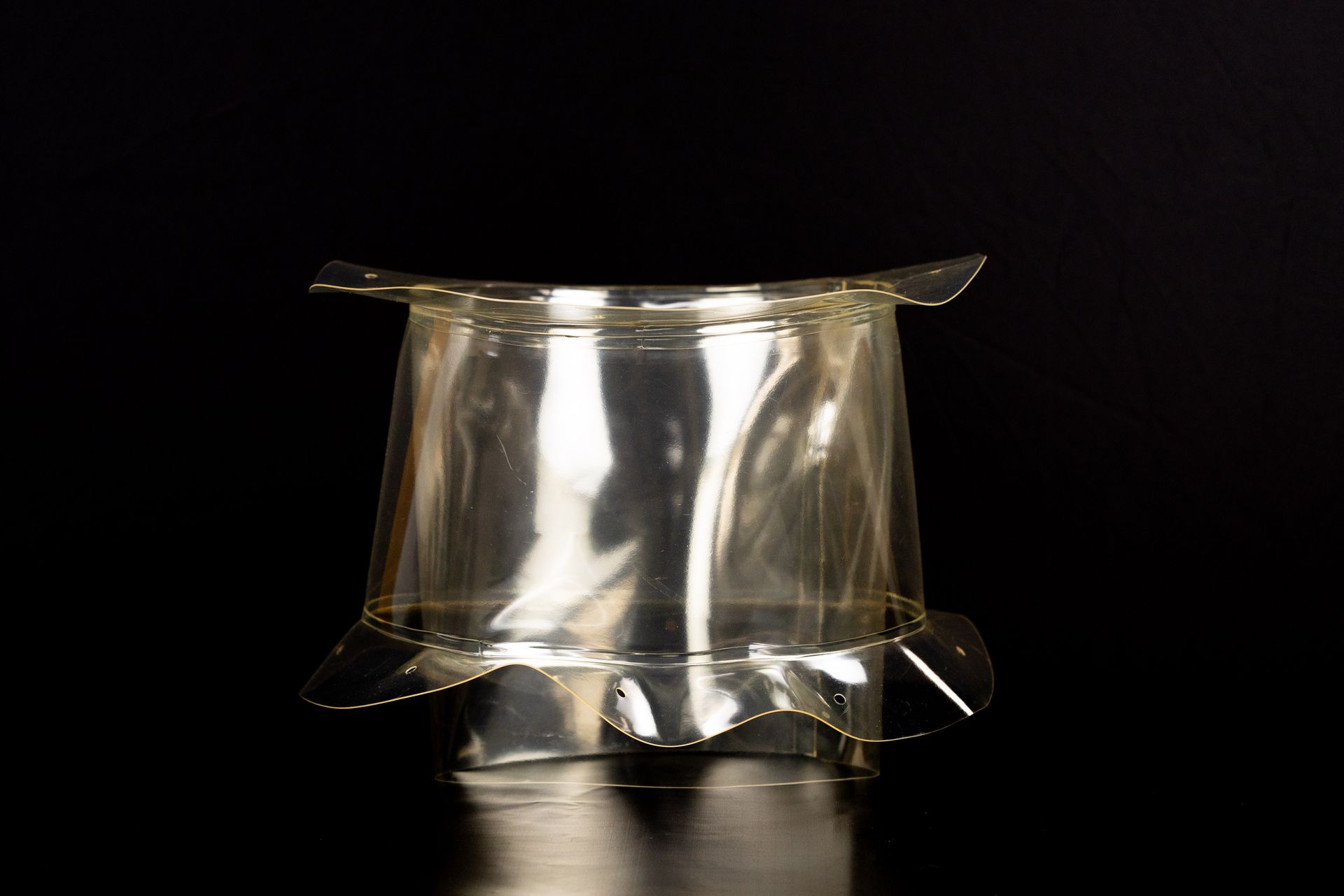

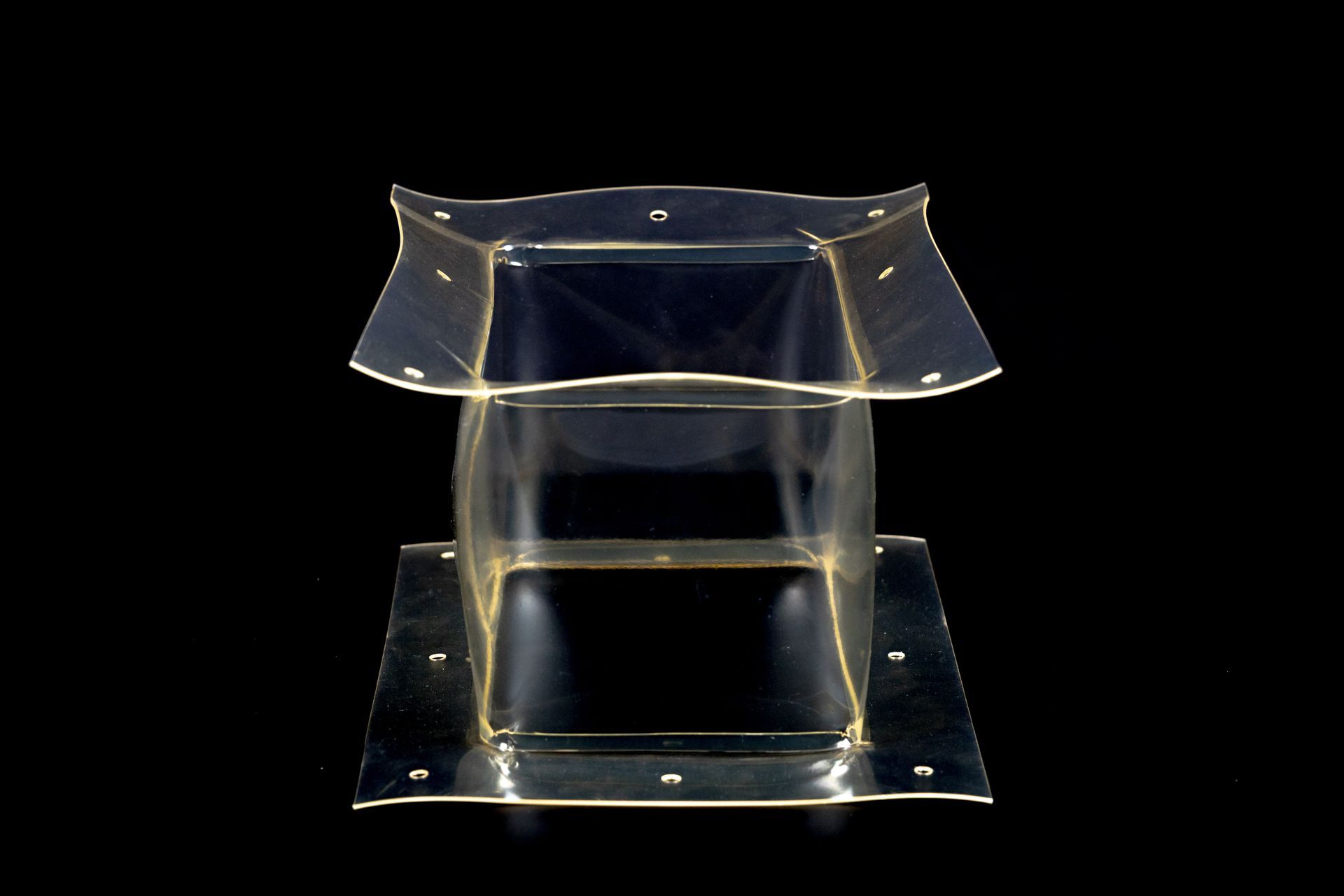

Photo Gallery

View more

Start Your Custom Project With Us Today

Embark on a journey to innovate and excel with our tailor-made industrial solutions. Connect with our experts now to elevate your operations with customized, precision-engineered products.

Contact Us

Frequently Asked Questions

  • What are the key applications of Siftex’s custom welded connectors?

    These connectors are designed for various industrial applications, including material handling, process control, and specialized environments requiring specific material properties like abrasion resistance or static dissipation.

  • Can I customize connectors to fit specific requirements?

    Yes, Siftex offers customizable options in terms of dimensions, material properties, and additional features to meet the exact needs of your industrial processes.

  • What are the temperature ranges for these materials?

    The materials have varying temperature ranges, with products like PTFE Membrane Laminated capable of withstanding up to 600°F, and Polyurethane types designed for use up to 223°F.

  • Are there options for high-strength and abrasion-resistant connectors?

    Absolutely, materials like Nylon Ballistic and Polyurethane X-Spy 0.040 are specifically designed for high strength and abrasion resistance.

  • Is there a variety of materials available for different environmental conditions?

    Yes, Siftex provides a range of materials, each suited to different environmental conditions, from high-temperature applications to those requiring chemical or mold resistance.
