What makes the Seeflex 020E Connector particularly suitable for weigh-scale applications?

The Seeflex 020E Connector is crafted from a clear, lightweight ether-based thermoplastic polyurethane alloy, making it ideal for weigh-scale applications due to its minimal effect on the weighing process. Its thin wall thickness of 0.35mm and high flexibility reduce the connector's influence on the scale's accuracy and sensitivity. This connector is also particularly useful for applications requiring high degrees of movement or for use with feed chutes and optical level sensors due to its transparency and flexibility.

How does the Seeflex 020E Connector maintain its integrity and performance despite constant flexing?

Despite its thinness and flexibility, the Seeflex 020E Connector is highly durable and designed to withstand constant flexing without fracturing. It features a tensile strength of 78 MPa and an ultimate elongation of 644%, which enable it to maintain structural integrity under dynamic conditions. Its robust design helps ensure that it remains dust tight and performs reliably in various industrial settings, particularly where equipment undergoes regular movement.

What are the key physical properties and certifications of the Seeflex 020E Connector?

The Seeflex 020E is transparent with a gloss finish and has a hardness of 90 Shore A, ensuring it is both visually unobtrusive and mechanically robust. It is FDA and USDA compliant, making it suitable for applications involving food contact, and is 3A certified, confirming its appropriateness for high-sanitation requirements. Furthermore, it is EU approved and Atex Certified, indicating its safety for use in dust explosion hazardous areas under certain restrictions.

Can the Seeflex 020E Connector be customized for specific industrial setups?

Yes, the Seeflex 020E Connector offers a range of customization options to fit specific system requirements. It is available in diameters from 100mm to 1,650mm and lengths from 80mm to 6,000mm, with increments allowing for precise sizing. While stainless steel and plastic rings can be added on request to enhance its structural support, it also features options such as tool release for easy installation, tapered configurations for specialized fittings, and one-ended designs to accommodate unique assembly requirements. These options ensure that the Seeflex 020E can be tailored to meet the specific demands of various operational environments.

Website Navigation:

Business Information:

Siftex Equipment Company Inc.

52D Connecticut Avenue, South Windsor, CT 06074

(800) 274-3839

Request a Quote

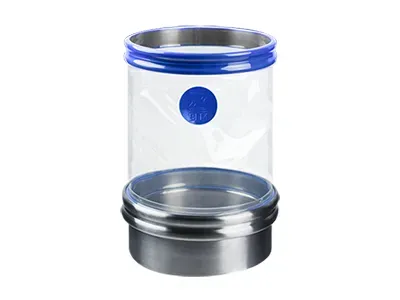

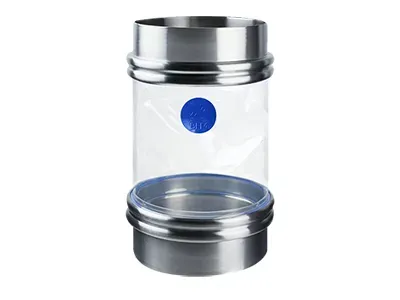

Seeflex 020E Connector

Description:

Our lightest connector made of clear, lightweight ether based thermoplastic polyurethane alloy, mainly used for weigh-scale type applications.

Documents and Resources:

For in-depth information on the features and installation of the Seeflex 020E Connector, refer to our detailed documents and resources.

Seeflex 020E is a clear, lightweight ether-based thermoplastic polyurethane alloy, mainly used for weigh-scale type applications.

Application

Designed for weigh-scale type applications.
Ideal for applications where Seeflex 040E is not flexible enough.
The Seeflex 020E Connector is the thinnest Seeflex connector in the BFM® range.

Description title

Available with SS Rings? (min. length for all is 150mm) on request only
Available with Plastic Rings? (min. length for all is 150mm) on request only
Available as Tool Release? Yes to Ø650mm
Available as Tapered? Yes
Available as a one ended Connnector? Yes
Quick Access Port Option? No

Lightweight, transparent Seeflex media, specifically designed for load and weigh scale type equipment
Also excellent for applications with vertical movement as it is particularly flexible
Ideal for feed chutes using optical level sensors (thinner, transparent connector walls)
Seeflex 020E is strong and will not fracture as a result of constant flexing

Vibration
Oscillation
Compression
Dust Tight
Food Safety
ATEX
